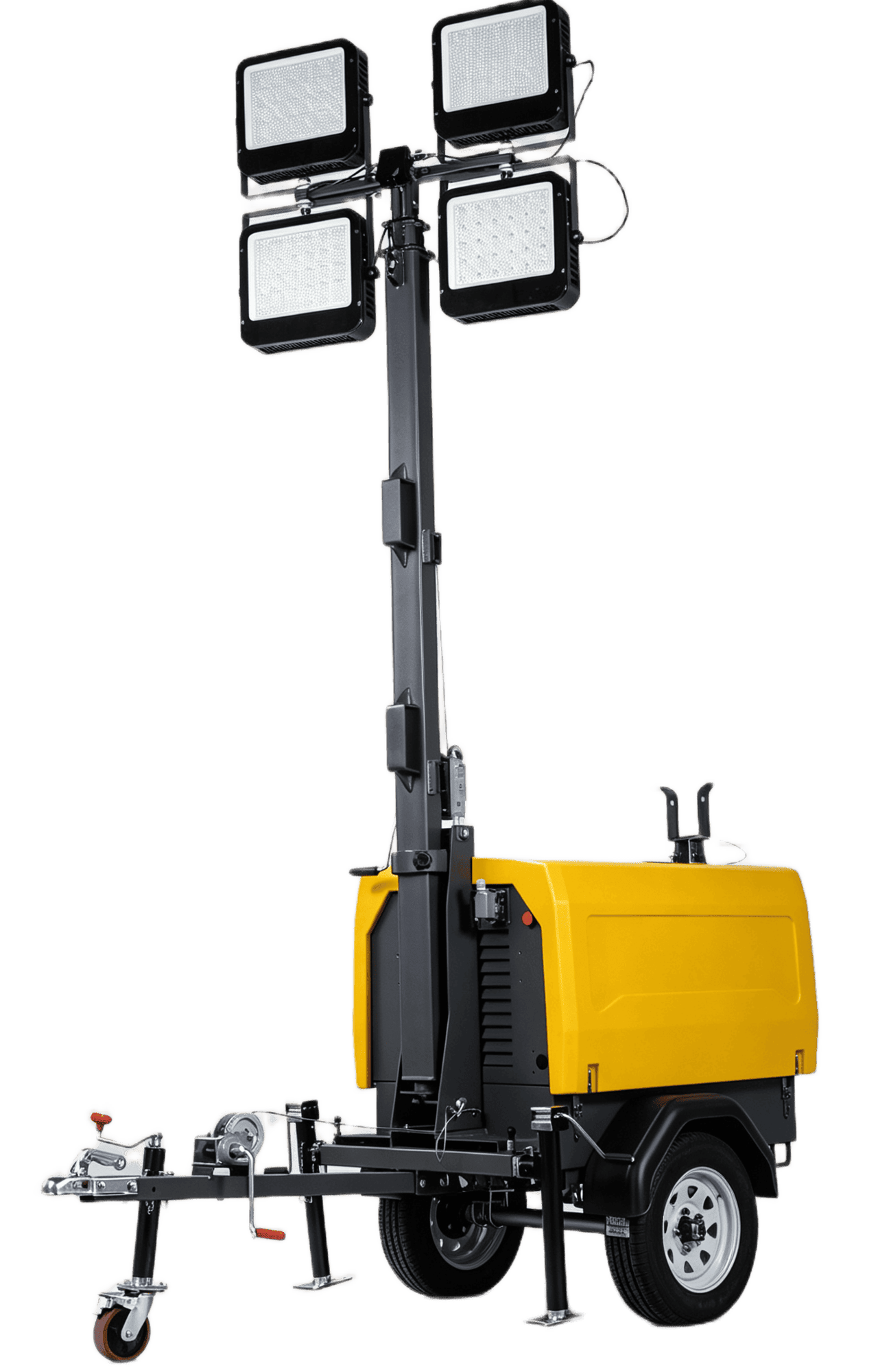

YLTW-V5-Tilt DownWater-Cooled Series Diesel Lighting Tower
Tilt-Down Mast Design | 4 × 400 W LED | 340° Mast Rotation
The YLTW-V5-T combines a low-profile tilt-down mast design with reliable water-cooled diesel power for demanding outdoor lighting applications. With a transport height of just 1.82 m and a fully elevated mast reaching 7.58 m, it offers a practical balance of transport convenience and elevated illumination. Built for construction, roadworks, and remote projects that require mobile lighting and dependable operation after dark.
Request a QuoteDesigned for Easier Transport and Reliable Site Lighting
A low-profile mobile lighting solution combining convenient transport, flexible deployment, and dependable diesel power.
Moving lighting equipment between worksites shouldn't be more complicated than necessary. The YLTW-V5-Tilt Down Series addresses this challenge with a low-profile, trailer-mounted design that combines independent diesel power and elevated lighting in one mobile unit. It is built for projects where equipment needs to travel, relocate, and operate in different outdoor environments.
The tilt-down mast lowers the overall transport height to 1.82 m, making the tower easier to store and move through height-restricted spaces. Once positioned on site, the mast extends to 7.58 m, while 340° rotation allows crews to direct lighting toward the required working area without repeatedly repositioning the trailer.
Powered by water-cooled diesel engines, the YLTW-V5-T provides reliable illumination in locations without convenient access to the electrical grid. Its extended runtime and flexible engine options make it well suited to roadworks, temporary construction sites, equipment rental operations, and remote maintenance projects where mobility and continuous lighting matter.
Compact when moving, versatile when deployed
Less Hassle in Transport. More Flexibility on Site.
Designed for projects where lighting equipment needs to move with the work, the YLTW-V5-T helps crews overcome transport limitations, simplify site positioning, and maintain reliable illumination.

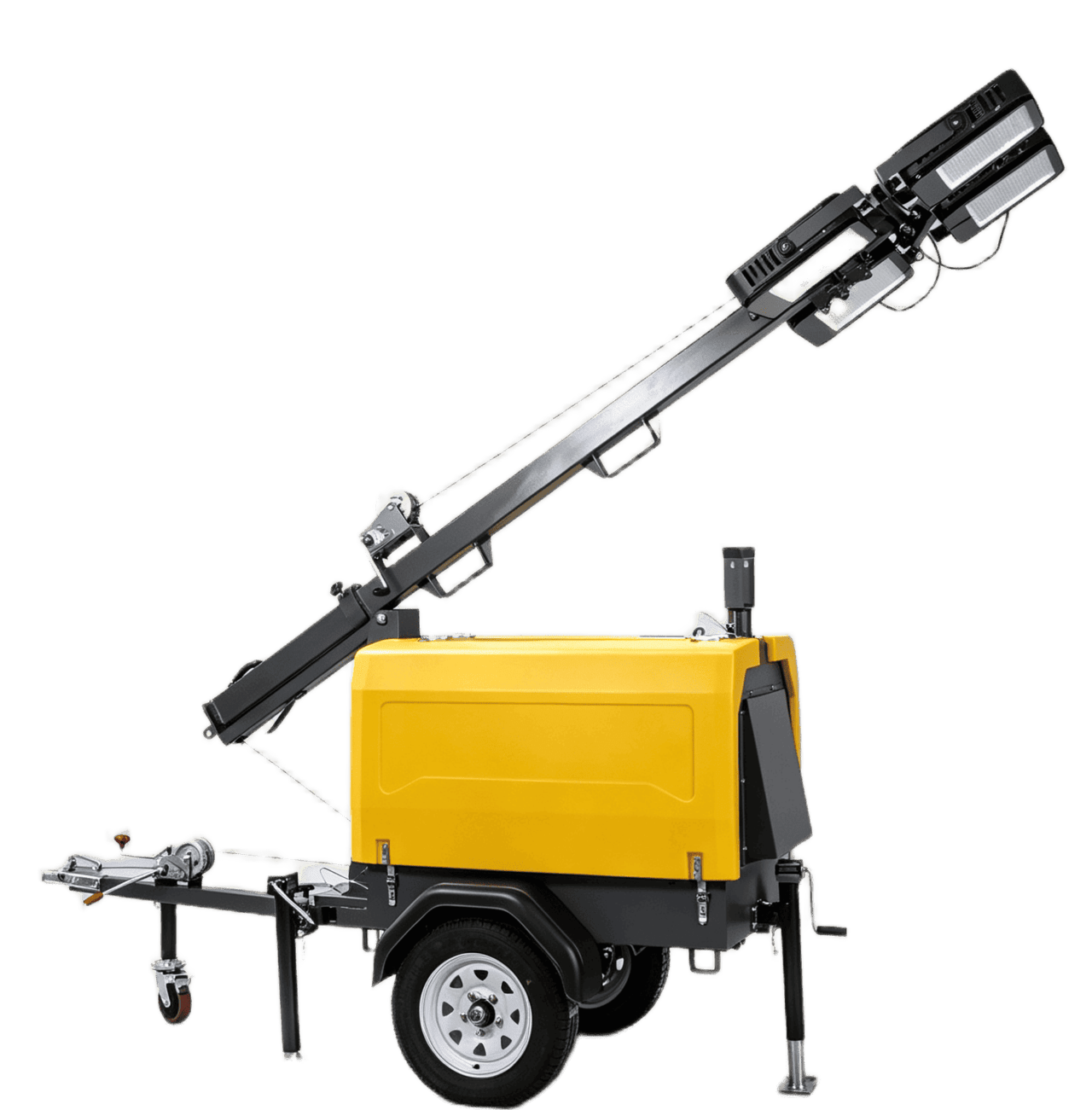

Tilt-Down Mast Design
The tilt-down mast reduces transport height to just 1.82 m, making the tower easier to transport, store, and move through height-restricted areas.

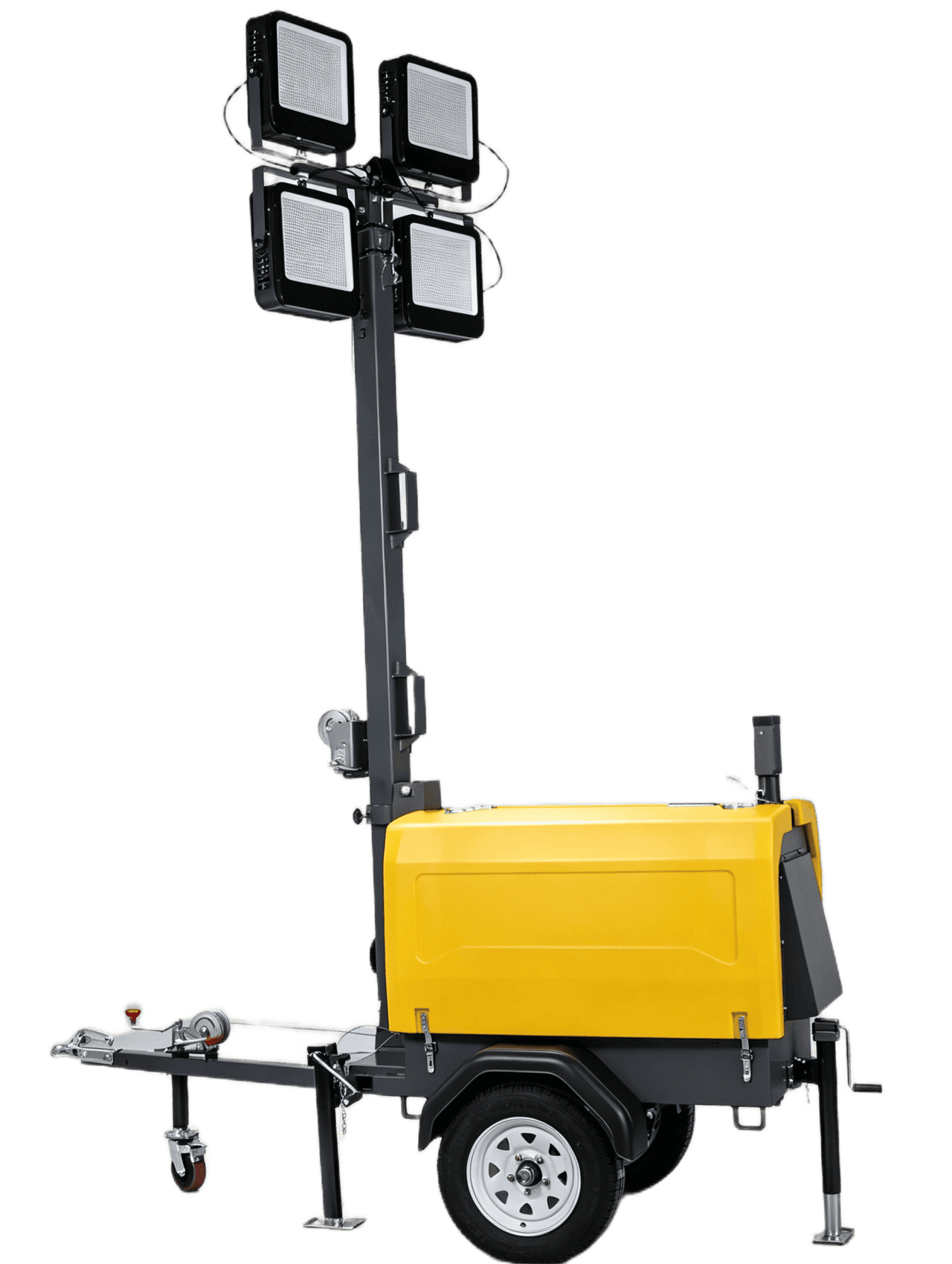

7.58 m Mast Extension
Despite its low transport profile, the 7.58 m telescopic mast allows elevated fixture positioning when the tower is deployed.
Convenient Site Mobility
An integrated towable trailer keeps the lighting system mobile, making transportation and relocation between temporary worksites straightforward.
Fewer Refueling Interruptions
Extended fuel autonomy helps crews maintain lighting through long shifts while reducing routine refueling visits.
Independent On-Site Power
Integrated diesel generation eliminates the need for external electricity when lighting temporary or remote outdoor worksites.
Adjustable Lighting Angle
340° mast rotation allows crews to redirect illumination as work progresses without repeatedly moving the entire lighting tower.

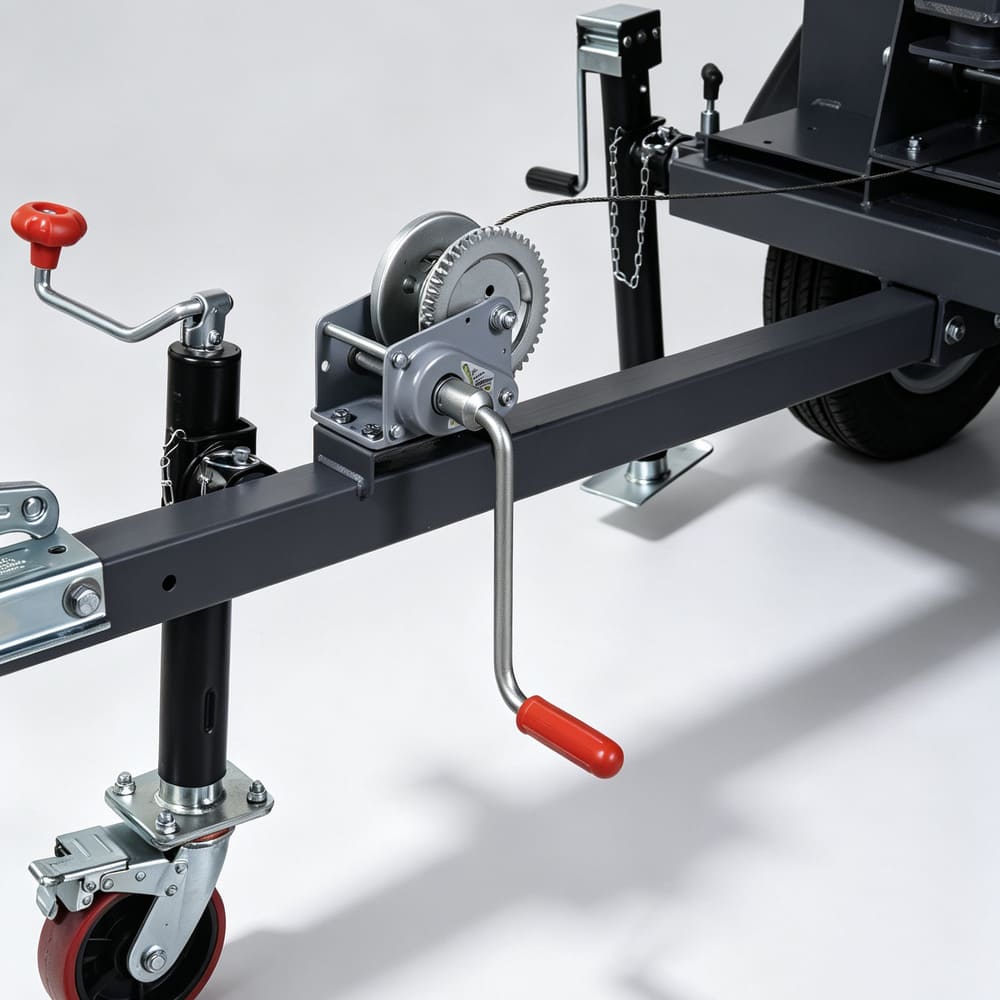

Simple Manual Operation
The mechanical winch provides a straightforward way to adjust mast height without a separate hydraulic lifting mechanism.
Flexible Engine Options
Five engine configurations offer different power outputs and brands to accommodate project loads and local servicing preferences.
Technical Specifications
Explore the engine options, generator output, lighting configuration, and transport dimensions of the YLTW-V5-T Series to find the right setup for your operating requirements.
Lighting Tower & General Specifications | |
|---|---|
Transport Dimensions | 2.88 × 1.11 × 1.82 m (L × W × H) |
Deployed Footprint | 3.53 × 2.24 m (L × W) |
Maximum Mast Height | 7.58 m |
Mast Structure | Tilt-down telescopic steel mast |
Mast Raising System | Manual winch |
Mast Rotation | 340° |
Mast Guidance | Deep-groove ball bearing and rolling bearing |
Power Cable | Coiled cable secured at light assembly |

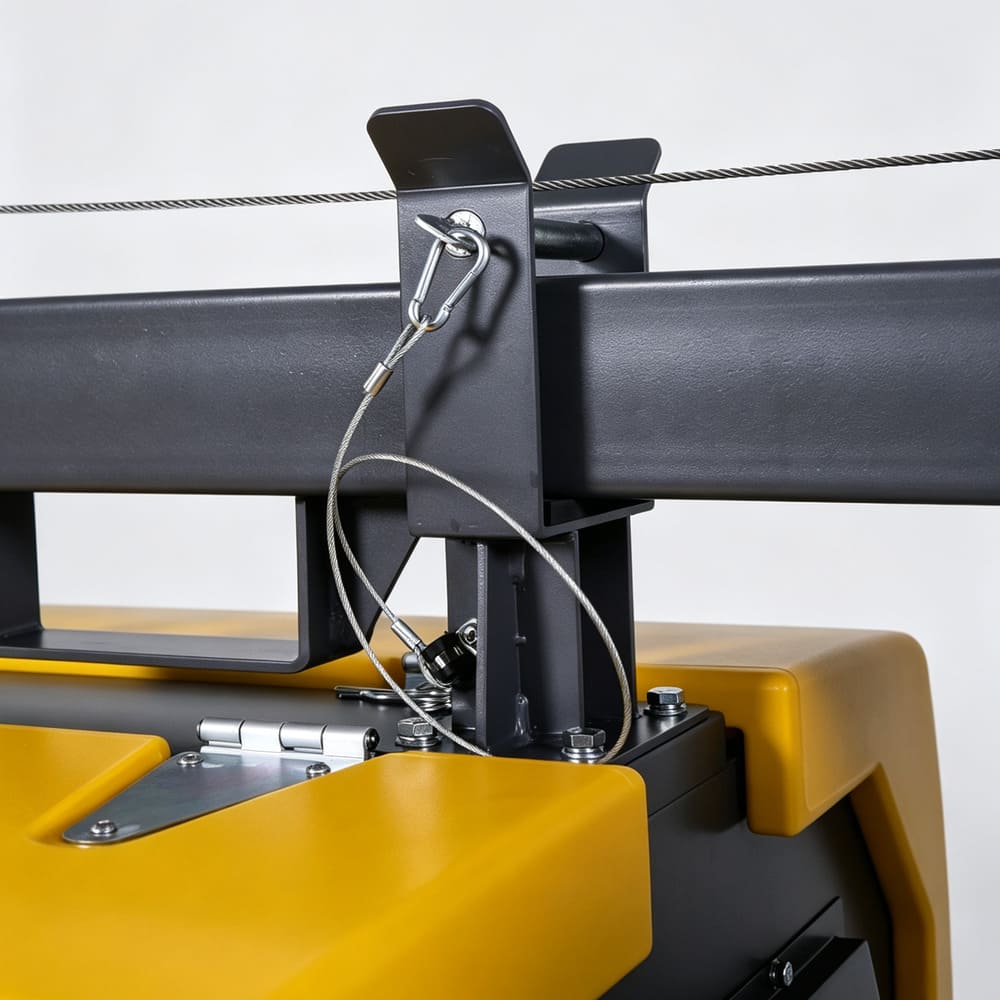

Mast Transport Lock | Tilt-down mast locking structure |
Canopy Material | Molded engineering plastic |
Stabilizers | 4 removable manual jacks |
Tow Coupling | 2-inch ball / 3-inch pintle ring |
Trailer Lights | Tail, turn, reverse and brake lights |
Maximum Towing Speed | 105 km/h |
Wind Resistance | 88.5 km/h max. with mast fully extended |
Engine & Alternator Specifications | |||||
|---|---|---|---|---|---|
Model | YLTW-V5-T-9KP | YLTW-V5-T-3KR | YLTW-V5-T-3KK | YLTW-V5-T-6KK | YLTW-V5-T-6KC |
Engine Brand | Pushen | Runwei | Kubota | Kubota | Changchai |
Engine Model | 2V80 | 2B06G3/5 | Z482-E3B | D1105-E3B | CZ380Q |
Engine Type | V-shaped, Water-cooled · 4-stroke · Naturally aspirated | Inline, Water-cooled · 4-stroke · Naturally aspirated | |||
Rated Speed (rpm) | 3000 / 3600 | 1500 / 1800 | 1500 / 1800 | 1500 / 1800 | 1500 / 1800 |
Rated Prime Power | 8.5 / 9.5 kW | 3 kW | 3 kW | 6 kW | 6 kW |
Fuel Tank Capacity | 110 L | ||||
Full-Load Runtime | 55 h | 145 h | 145 h | 90 h | 100 h |
Alternator Type | Self-excited, 2-pole, single-phase | ||||
Frequency / Voltage | 50 Hz: 220/110 V · 60 Hz: 240/120 V | ||||

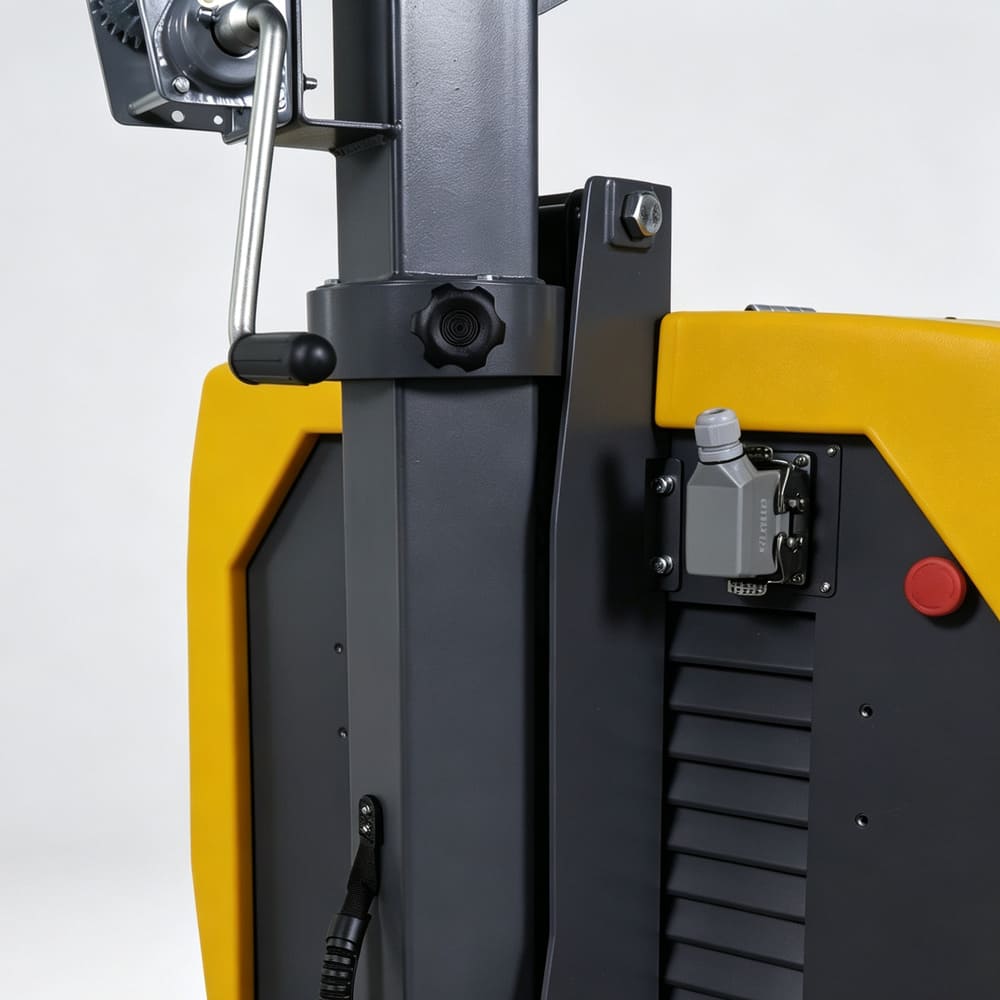

Auxiliary Power Outlet | 1 × European-standard 16 A / 220 V, single-phase | ||||
Product Detail View
Heavy-duty construction. Long runtime. Reliable towing
