YLTC-AIRCART Series · Lightweight Plug-in Light Tower
Lightweight | Plug-in | 3.5m | Aluminum Mast
YLTC-AIR is plug-in LED light tower built with aluminum mast, its weight just 46 kg. One person can move it across jobsite, raise it to 3.5m with the hand winch, and run it off standard 16A supply — with lamp options from 240 to 600 W to match your wrokzone.
Request a QuoteProduct Overview
Compact, plug-in, made for indoor and close work

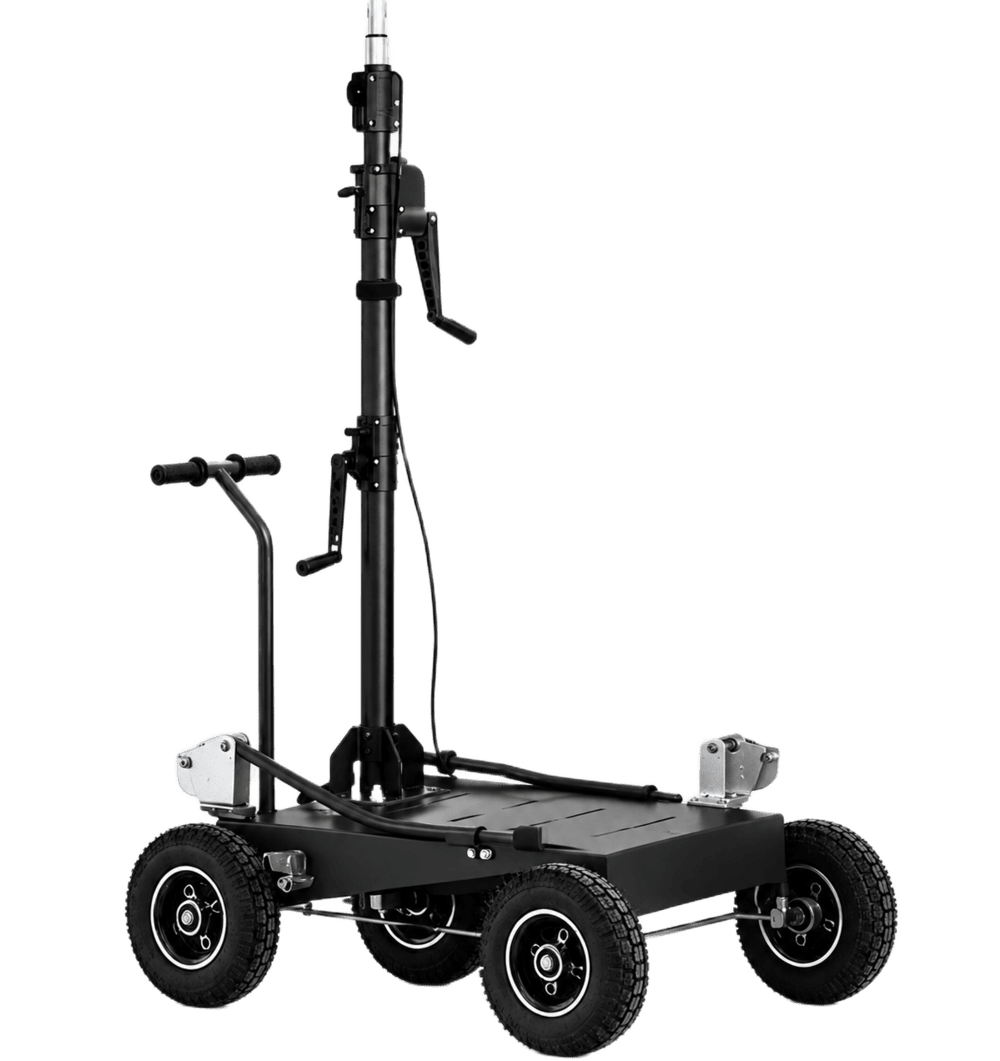

The YLTC-AIR is a plug-in LED light tower built on an aluminum mast, which brings the whole unit down to 46 kg. That weight changes how it works on site: one person steers it on its 10-inch wheels, winds the mast up by hand and plugs it in, with no second worker and no machine needed to move it.

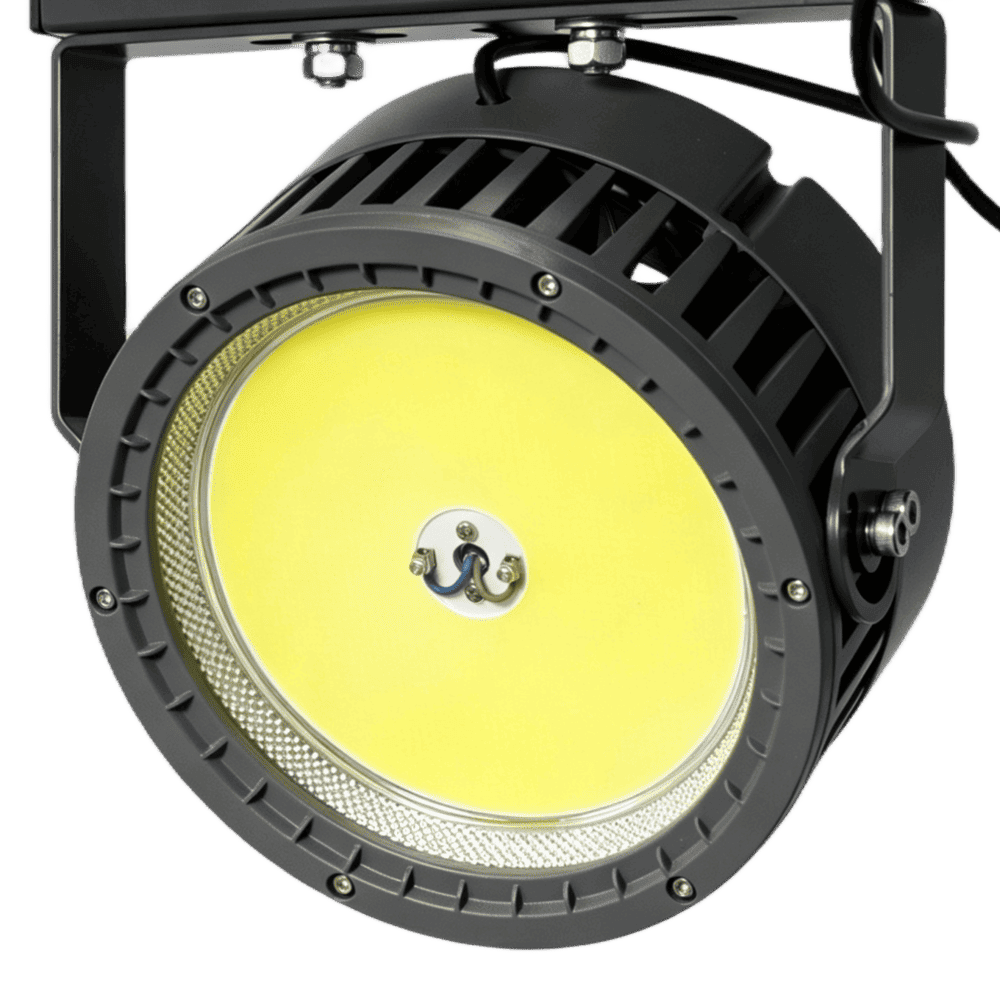

Raised, it reaches 3.5 m — tall enough to light a work area from above rather than just throwing light along the ground. The four LED lamps are chosen to suit the job, from 240-watt for routine work up to 600-watt for full-area coverage, and every option is sealed to IP65 for dust, damp and outdoor use.

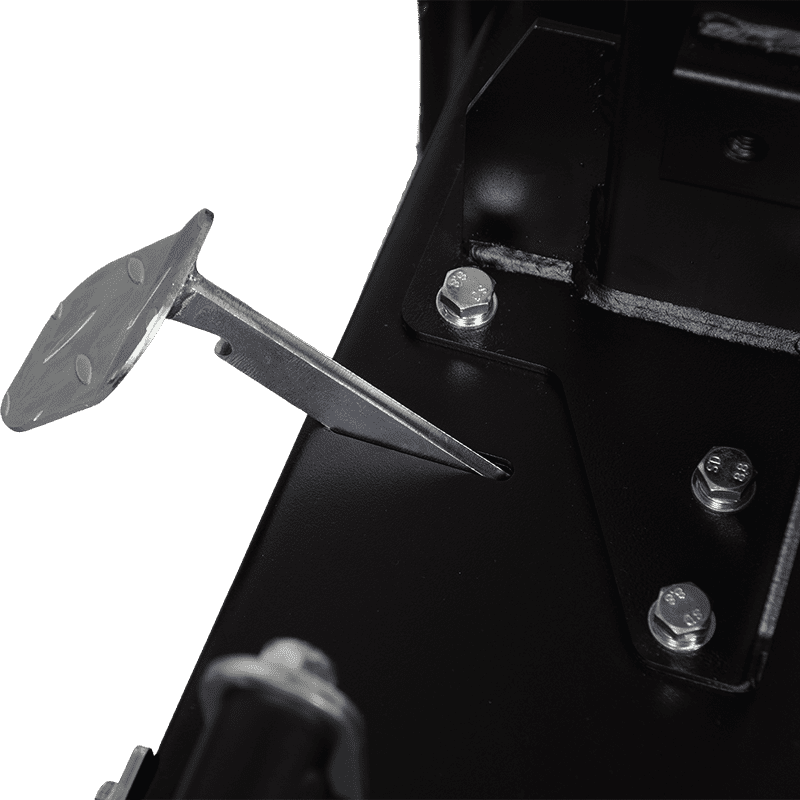

The cart steers through 35° for tight ground, then locks on a foot brake and two legs once it's placed. It runs off any 16A supply, so the only cost is the power it draws and there's nothing to service in the base unit. Where there's no supply, the optional generator platform carries its own.
Features & benefits
Light to move, set up to work
LIghtweight & portable
An aluminum mast brings the whole unit to 46 kg, so it moves and lifts without a second worker.
Light to suit the job
Lamps from 240 to 600 watts let you match the output to the work, from close tasks to wide areas.
Adjustable telescopic mast
Hand winch raises the mast high enough to light your whole workzone, not just the ground nearby.
Off-grid when needed

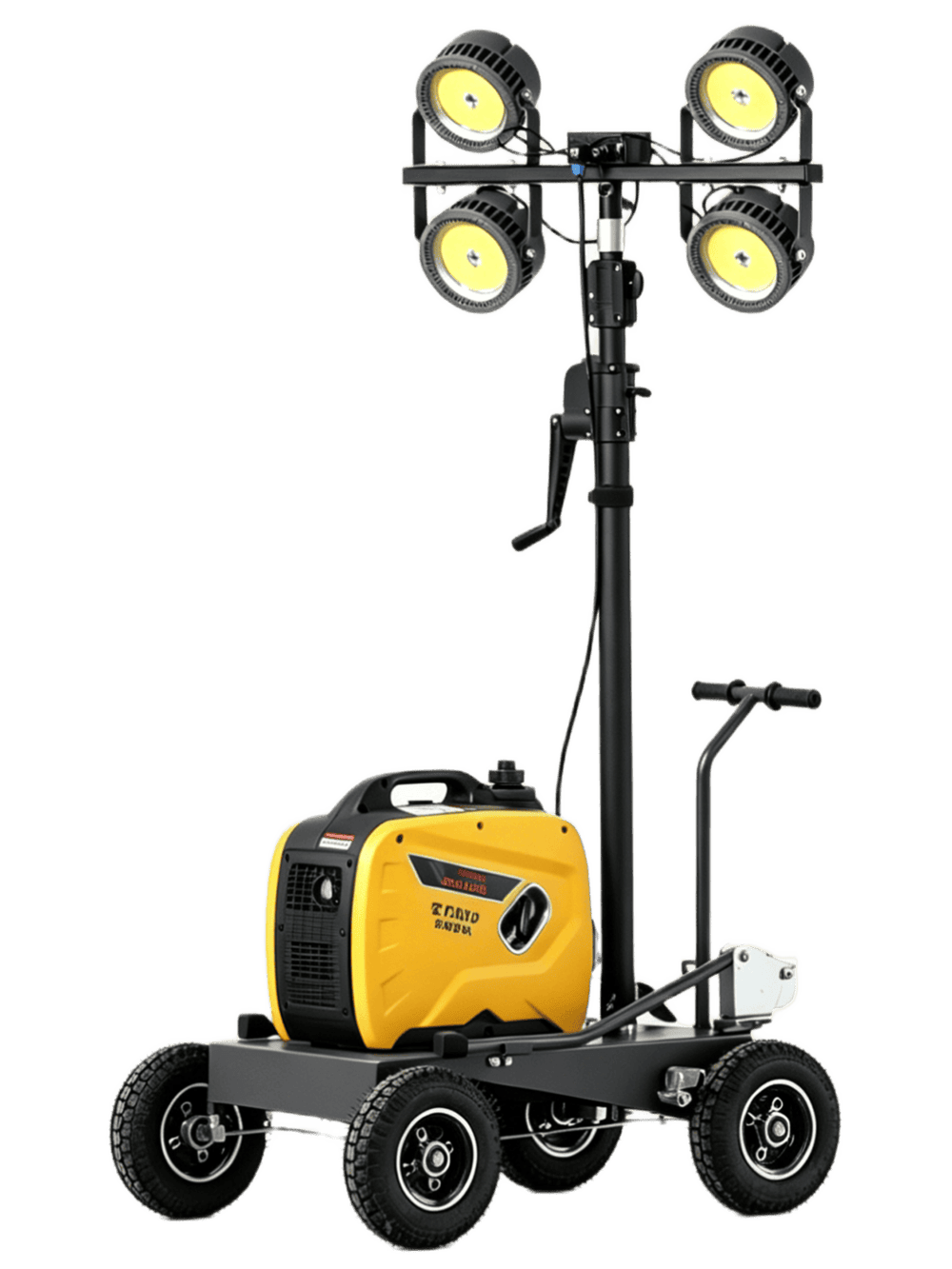

Fit the optional generator platform and the same cart powers itself away from the grid.
Quick to set up
Roll it in, drop the legs, lock the brake and wind the mast up by hand — under a minute.
Easy to move
A tight 35° turn and rolling wheels make it simple to position in busy or narrow spaces.
Low running cost
It works off a standard wall supply, so the only running cost is the power the lamps draw
All-Weather Build
IP65 lamps shrug off dust and water, so the unit keeps working through rough site conditions.
Technical Specifications
A small tower that earns its place
Lighting System | |
|---|---|
Light Fixtures | 4 × 240W/300W/320W/400W/600W LED |
Power inlet plug | 16A 220V single-phase (Euro plug) |
Total Lumens | Approx. 125,000 ~ 264,000 lm |
Code Temperature (K) | 5,000 K / 6,500 K |
CRI | 80 / 85 |
LED Lifespan | Up to 100,000 hr |
Protection Rating | IP65 |
Trailer, Mast & Dimensions | |
|---|---|
Max. Mast height | 11.5 ft / 138" / 3.505 m |
Mast structure & Material | 5-section aluminum alloy telescopic mast |
Mast actuation | Manual winch |
Brake | Foot brake |
Stabilizing legs | 2 × manual support legs |
Steering angle | 35° |
Net weight | 101 lb (46 kg) |
Transport dimensions | 42" × 28" × 70" (1.065 × 0.701 × 1.77 m) |
Product Detail View
