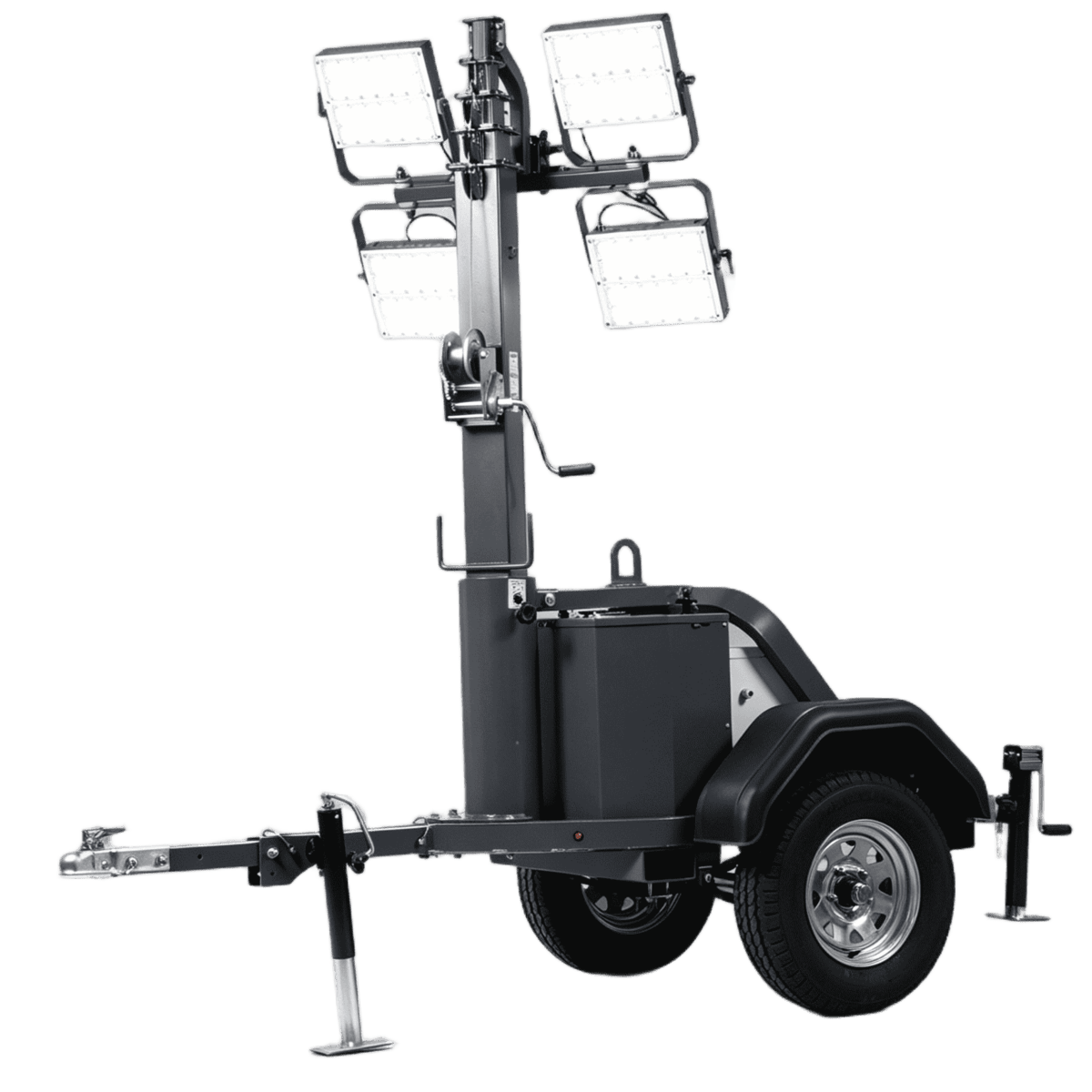

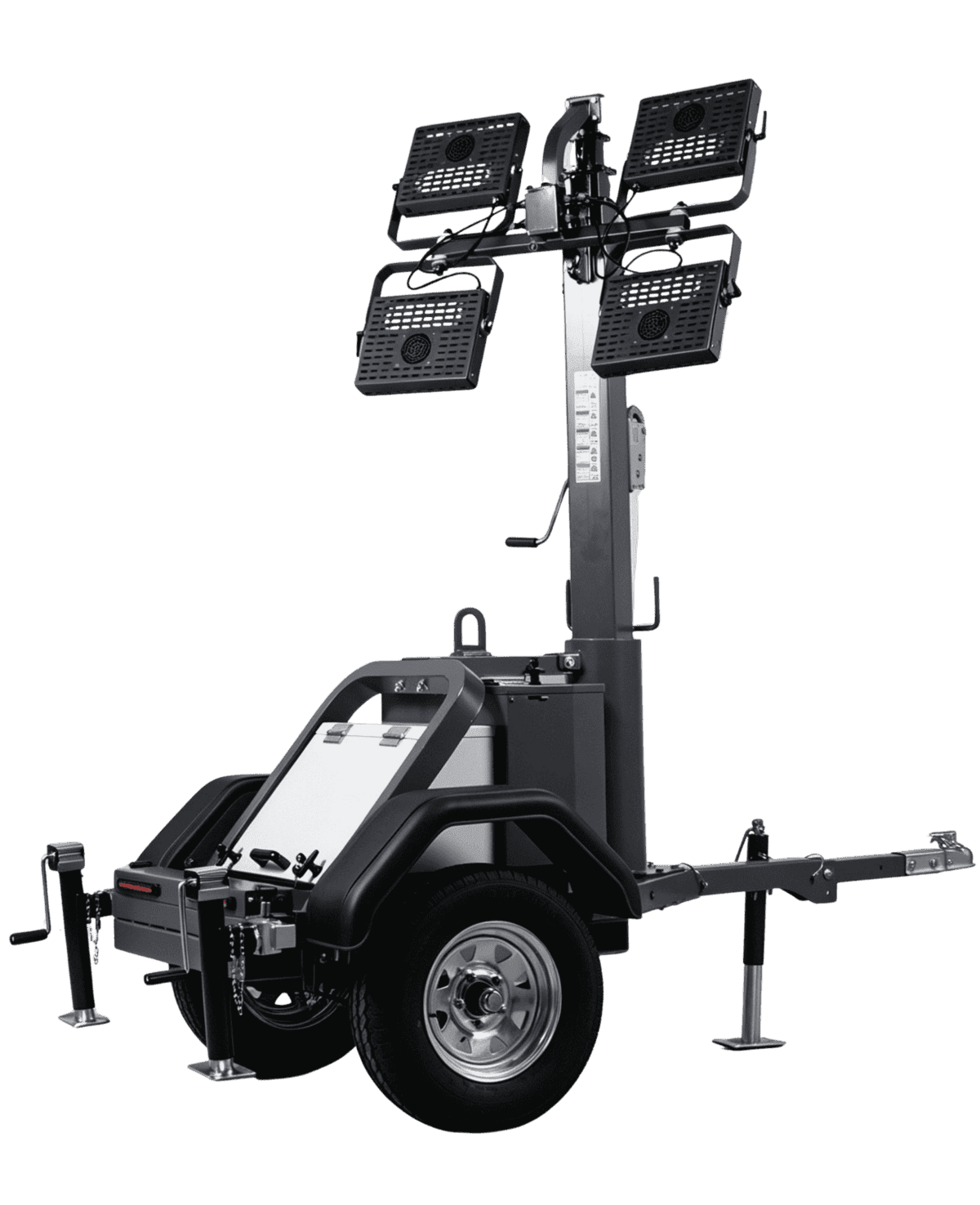

YLTL-TALINK Series · Plug-In Mobile Light Tower
Towable, Chainable, Ready Anywhere Power Reaches
This towable LED light tower powered by your existing site supply. No engine, no fuel costs, no emissions — just reliable high-output illumination wherever a 15A outlet reaches.
Request a Quote7.5 m
Max. Mast Height
960 W
Total Lamp Wattage
88.5 km/h
Wind Stability
IP65
Protection rating
Product Overview
The YLTL-TA is a towable plug-in light tower built for job sites where power is already on hand. Connect to grid power, a portable generator, or a battery storage system, and the YLTL-TA delivers consistent, high-output LED illumination across a wide work zone — no engine to start, no fuel to manage, no scheduled maintenance to track.
At 7.5 meters elevated, the five-section tubular steel mast and four IP65-rated 240W fixtures spread light wide and even, reducing the number of units needed to maintain safe working light levels. The 340° rotation range means one setup can serve multiple directions without repositioning the trailer.
On the road, ST 175/80R13 wheels and a leaf spring axle handle the distances between deployments. On site, three manual jacks hold the tower steady in winds up to 88.5 km/h — the setup that gets placed, stays placed.
Ideal for:
- Road & Bridge Construction
- Emergency Staging Areas
- Mining Access Roads
- Large outdoor events and festivals
- Stadium & Arena Events
- Ports & Logistics Yards
Multiply Coverage, Not Costs

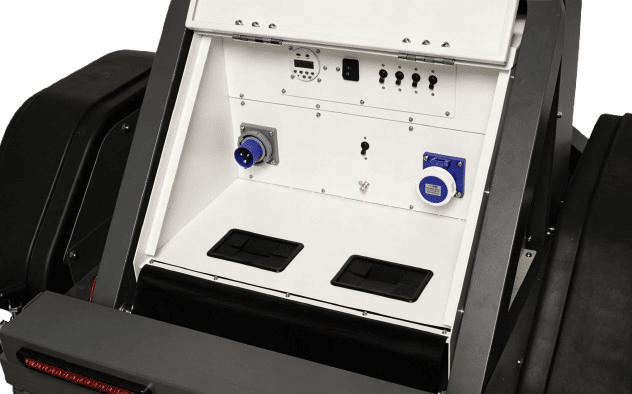

Each YLTL-TA carries an IEC 60309 pass-through outlet alongside its inlet. Chain up to three towers in series off one power source — tripling your lit area without adding generators, fuel costs, or maintenance cycles.
Running three towers off a single source cuts per-unit power infrastructure cost by two-thirds versus independent generator-driven towers. Pair with the AIRCOOLED Series for fully off-grid daisy-chain deployment.
Features & benefits
Built for intensive professional use
Mast built for working height
The 5-section tubular steel mast extends to 7.5m and rotates a full 340° without lowering and holds position in winds up to 88.5 km/h when fully elevated.
No engine. No maintenance
Without a diesel plant onboard, there's no oil to change, no air filter to replace, no fuel system to service. Maintenance is limited to the mast and fixtures
Runs off existing site power
The YLTL-TA runs from any 15A 220V IEC 60309 source — grid hookup, generator, or battery storage unit. No dedicated power infrastructure required
Tow at highway speed, hook up in minutes

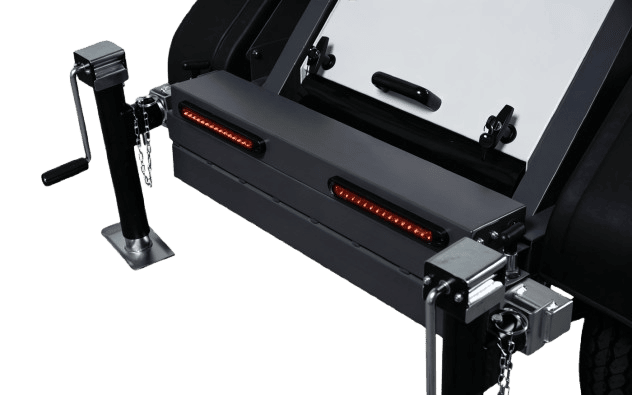

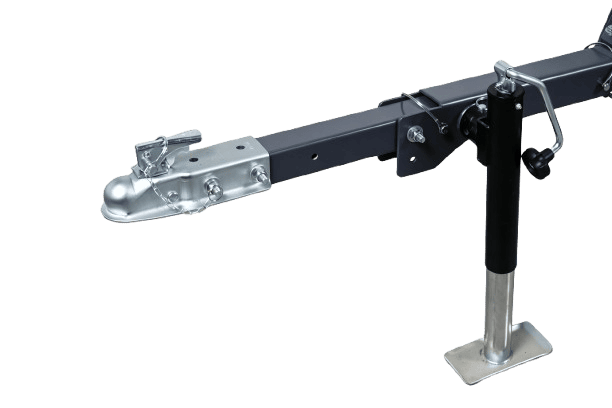

Accepts a 2" ball coupler or 3" pintle ring. Rated to 105 km/h. Three manual stabilizing jacks level the unit on uneven ground without tools.

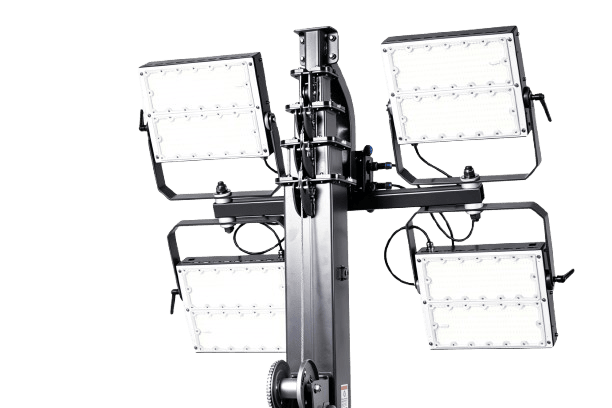

IP65 fixtures rated to 100,000 hours
IP65-rated 240 W LED fixtures are rated to outlast the trailer itself under normal site conditions. No lamp warm-up time, instant full output from cold
One-person setup
The manual winch raises the mast without assistance. Three manual stabilizing jacks level the trailer on uneven ground. From tow-in to lights-on takes one operator and no special tools.
Technical Specifications
Engineered for performance & longevity
Wherever a power source is on site, the YLTL-TA is ready to run. From long-haul infrastructure projects to single-night events, it covers the ground that needs light.
Lighting System | |
|---|---|
Light Fixtures | 4 x 240W LED |
Input/output voltage | 50 Hz - 220 V / 60 Hz - 120 V |
Power inlet & outlet | 15A IEC 60309 (6H) |
Total Lumens | 124,800 lm |
Code Temperature (K) | 5,000 K |
CRI | 80 |
LED Lifespan | 50,000 hr |
Protection Rating | IP65 |
Trailer, Mast & Dimensions | |
|---|---|
Transport dimensions | 2,550 × 1,224 × 2,455 mm |
Max. Mast height | 24.6 ft / 295" (7.5 m) |
Mast rotation | 340° |
Actuation | Manual winch |
Stabilizing jacks | 3 × manual jacks with removable bar |
Wind Stability Rating | 88.5 km/h (55 mph)— fully elevated |
Max. towing speed | 105 km/h (65 mph) |
Tires | ST 175/80R13 |
