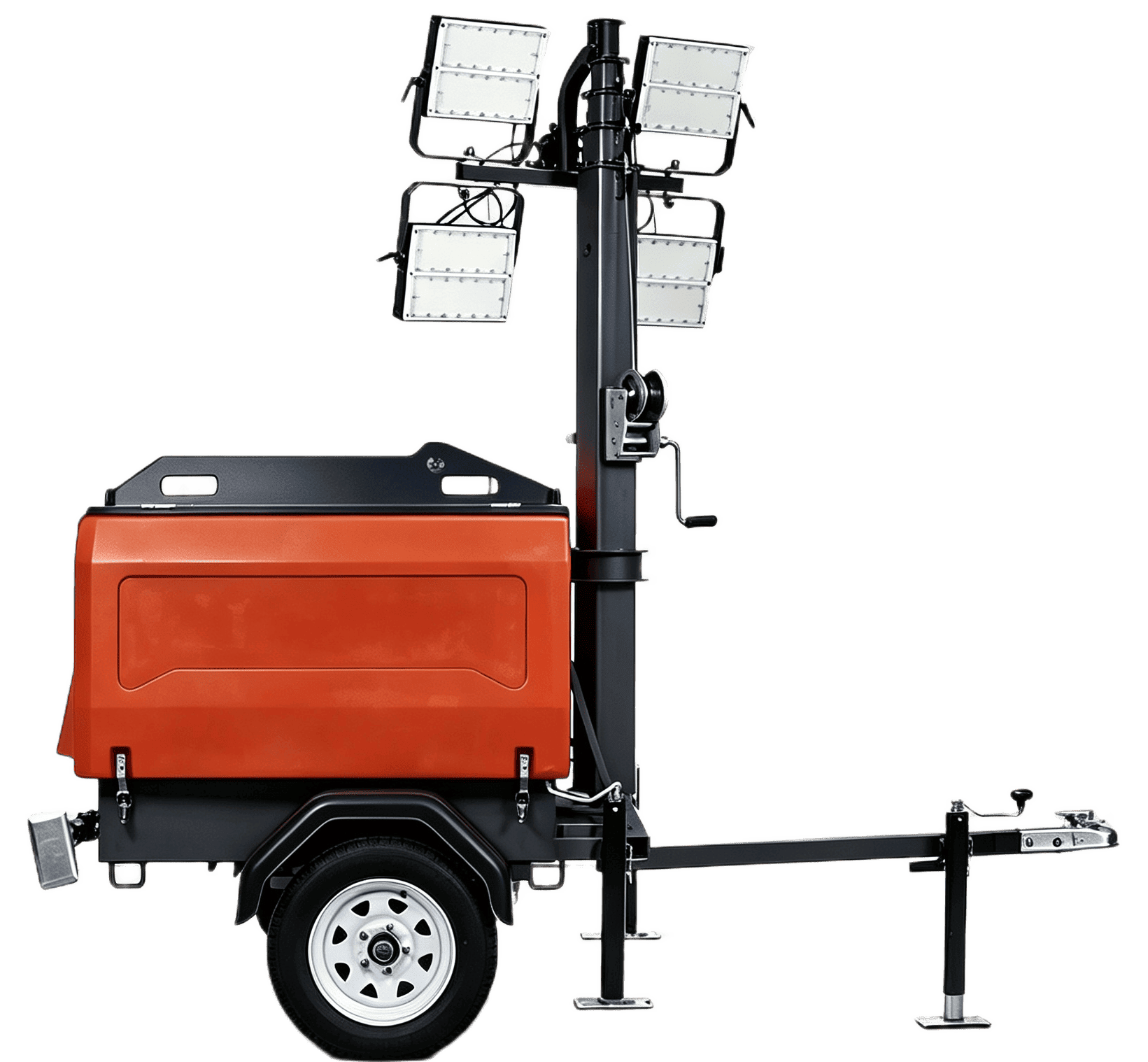

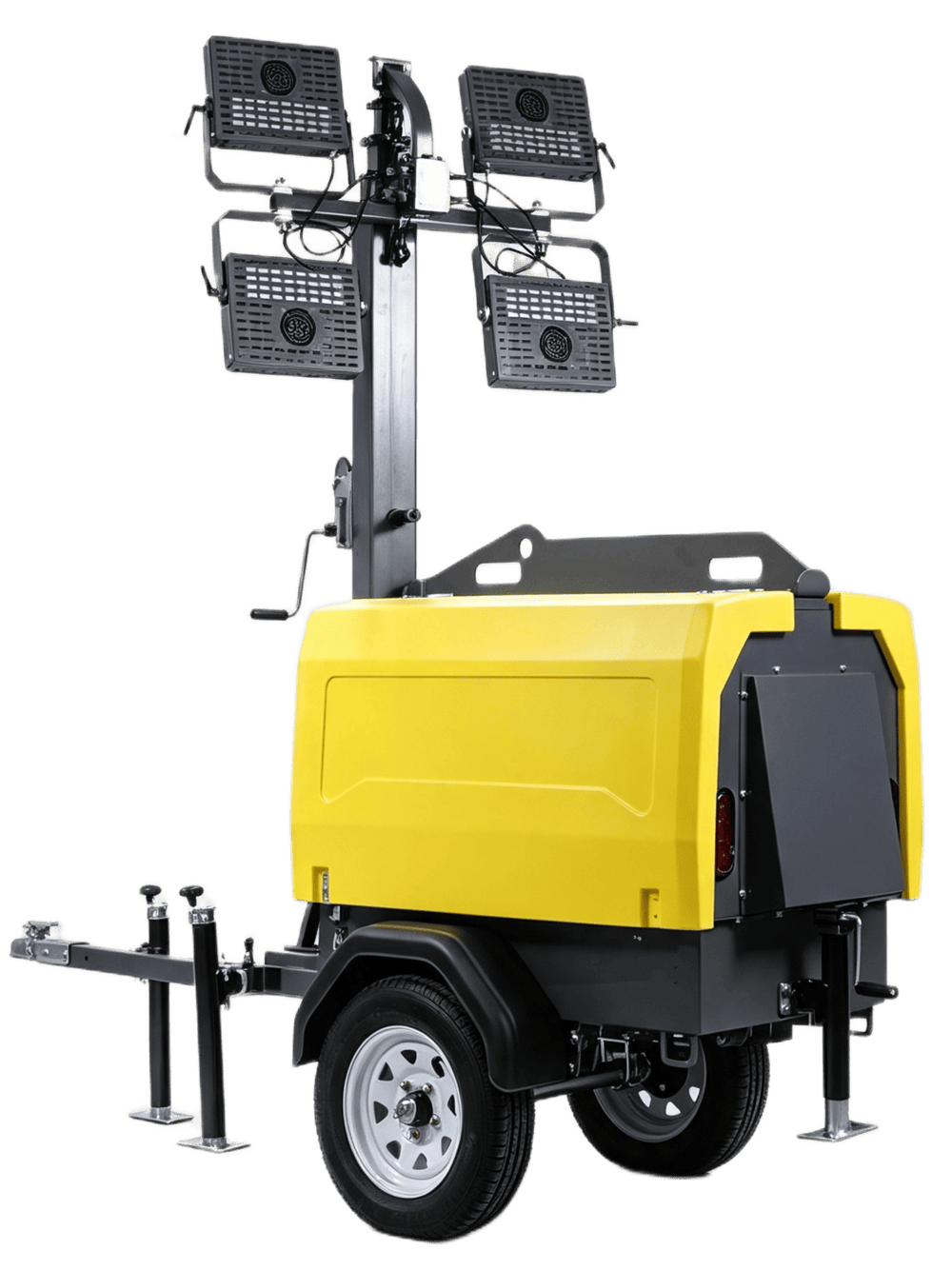

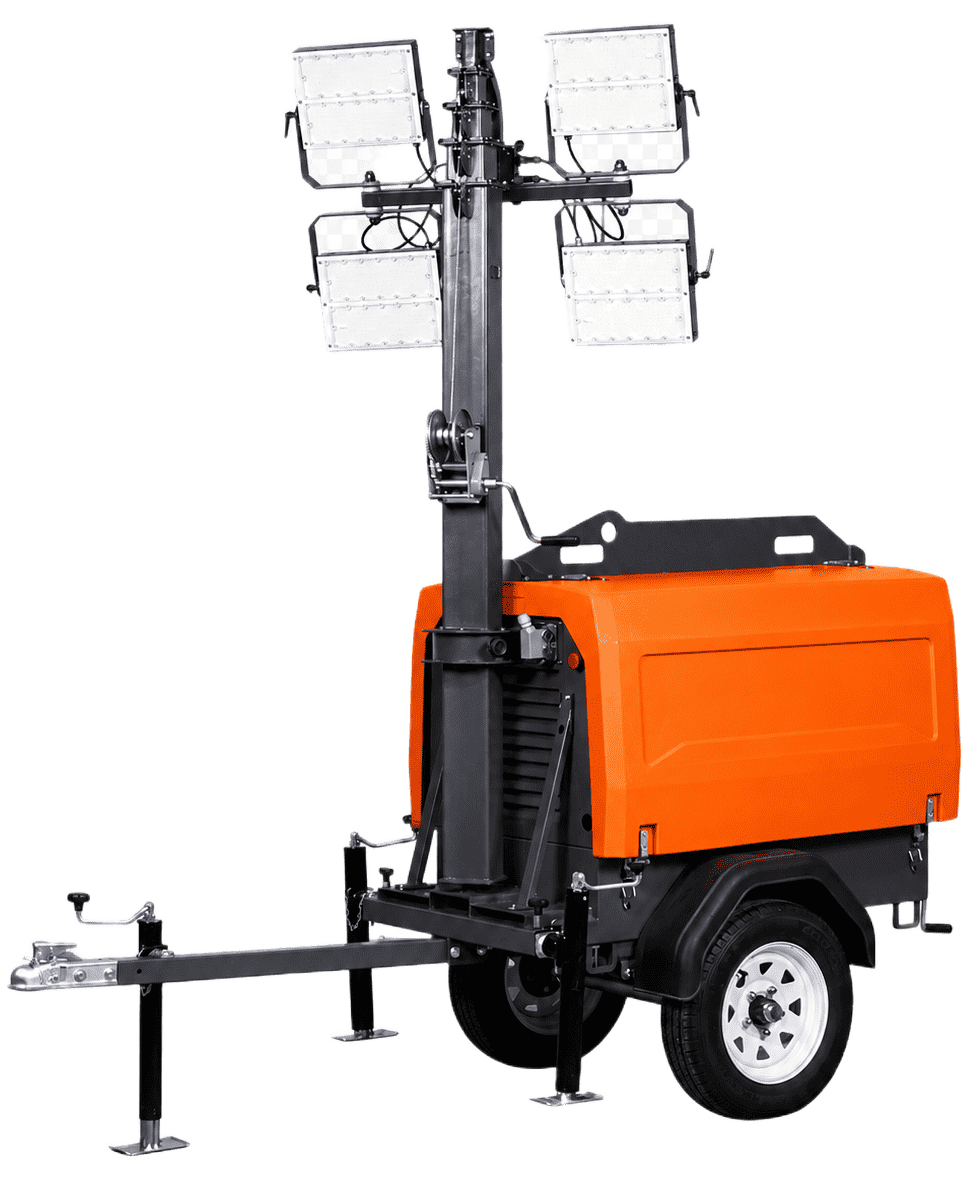

YLTW-V5Water-Cooled Series · Engine-powered Lighting Tower
Reliable light for hot, remote and continuous sites
YLTW-V5 is a water-cooled diesel light tower for sites where heat, distance from mains power and long working hours are the normal conditions. Water cooling keeps the engine steady in high temperatures. A 110-liter tank and a 7.5 m or 9 m mast let one unit run and light a large area with fewer stops. Its compact trailer makes it easy to tow between jobs.
Request a QuoteProduct Overview
Built for Sites Where Heat and Distance Are the Challenge
Some sites run hot all day and sit far from any power supply. The YLTW-V5 is a water-cooled diesel light tower made for these conditions. Its water cooling gives better heat dissipation than air-cooled designs, keeping the engine suited to high-temperature work.
A self-generated power supply lights the site without a grid connection. The 110-liter fuel tank keeps the tower running for 55 to 145 hours on a single fill, depending on the model. The 340° rotating tower on a 7.5 m or 9 m mast covers wide areas without moving the trailer.
Best suited to mining, infrastructure projects, emergency work and construction in hot climates, or anywhere continuous lighting is needed without mains power. With 3 to 9.5 kW output across 50Hz and 60Hz systems, the range covers a wide spread of site loads.
Features & benefits
Water-Cooled Light for Demanding Work
Cooling Efficiency
Water cooling dissipates engine heat more effectively, supporting stable operation on hot sites throughout the shift.
Extended Runtime
A 110-liter tank delivers 55 to 145 hours at full load, depending on the model.
Wind Resistance
Rated for 88.5 km/h winds with the mast fully extended, suited to open, exposed sites.
Full-Height Coverage
A 7.5 m or 9 m mast with 340° rotation lights wide areas from one position.
Compact Towing Width
At 1.11 m wide in transit, the trailer fits narrow routes and tight site access.
Road-Speed Towing
Tow at up to 105 km/h with a 2-inch ball or 3-inch pintle coupler, so it moves easily between jobs.
Flexible Output
Five models span 3 to 9.5 kW and run on both 50Hz and 60Hz systems.
Simple Manual Setup
Setup relies on a manual winch and four removable jacks, so no external power is needed.
Technical Specifications
Compare YLTW-V5 Models
Construction & Dimensions | |
|---|---|
Transport Dimensions | 2.76 × 1.11 × 2.61 / 2.70 m (L × W × H) |
Deployed Footprint | 2.76 × 2.24 m (L × W) |
Maximum Mast Height | 7.5 m / 9 m |
Mast Structure | Five-section tubular steel design |
Mast Operation | Manual winch; 340° rotation |
Stabilizing Legs | 4 removable stabilizing bars with manual jacks |
Wind Resistance | 88.5 km/h with mast fully extended |
Maximum Towing Speed | 105 km/h |
Engine & Alternator System | |||||
|---|---|---|---|---|---|
Light tower model | YLTW-V5-9KP | YLTW-V5-3KR | YLTW-V5-3KK | YLTW-V5-6KK | YLTW-V5-6KC |
Engine brand / model | Pushen 2V80 | Runwei 2B06G3/5 | Kubota Z482-E3B | Kubota D1105-E3B | Changchai CZ380Q |
Engine characters | V-shaped, water-cooled, four-stroke | Inline, water-cooled, four-stroke | |||
Rated Speed (rpm) | 3000 / 3600 | 1500 / 1800 | |||
Cylinders | 2 | 2 | 2 | 3 | 3 |
Engine aspiration | Naturally aspirated | ||||
Alternator type | self-excited, 2-pole, single phase alternator | ||||
Rated Prime Power | 8.5KW（50HZ）/ 9.5KW（60HZ） | 3 kW | 6 kW | ||
Full-Load Runtime | 55 h | 145 h | 145 h | 90 h | 100 h |
Fuel Tank Capacity | 110 L | ||||
Output Frequency | 50 / 60 Hz | ||||
Rated AC Voltage | 220/110V (50HZ), 240/120 (60HZ) AC | ||||
Auxiliary Power Outlet | 1 × European-standard 16 A / 220 V single-phase socket | ||||
