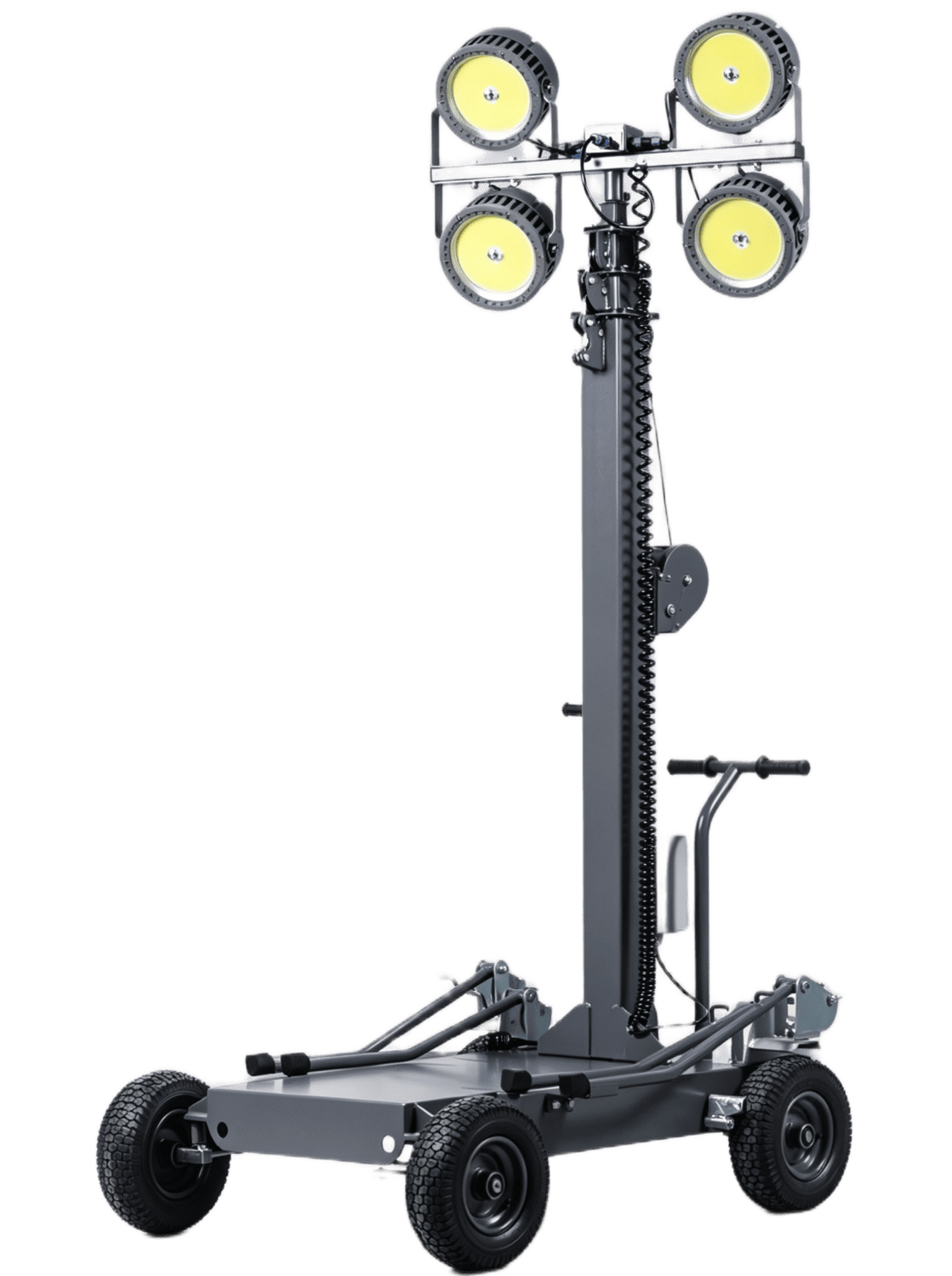

YLTC-PROCART Series · Light Tower
Plug-in | 5.35m | Max. Stability | Compact & Robust
Built for workzone that need real height and wide spread of light, the YLTC-PRO lifts its lamps to 5.35 m on sturdy steel mast and plants itself on four legs and wide stance.It plugs straight into 16A supply, sets up by hand in minutes, and can carry its own generator for off-grid work
Request a QuoteProduct Overview
Ideal for those looking for a solid, high-performance and cost-effective solution in professional settings.

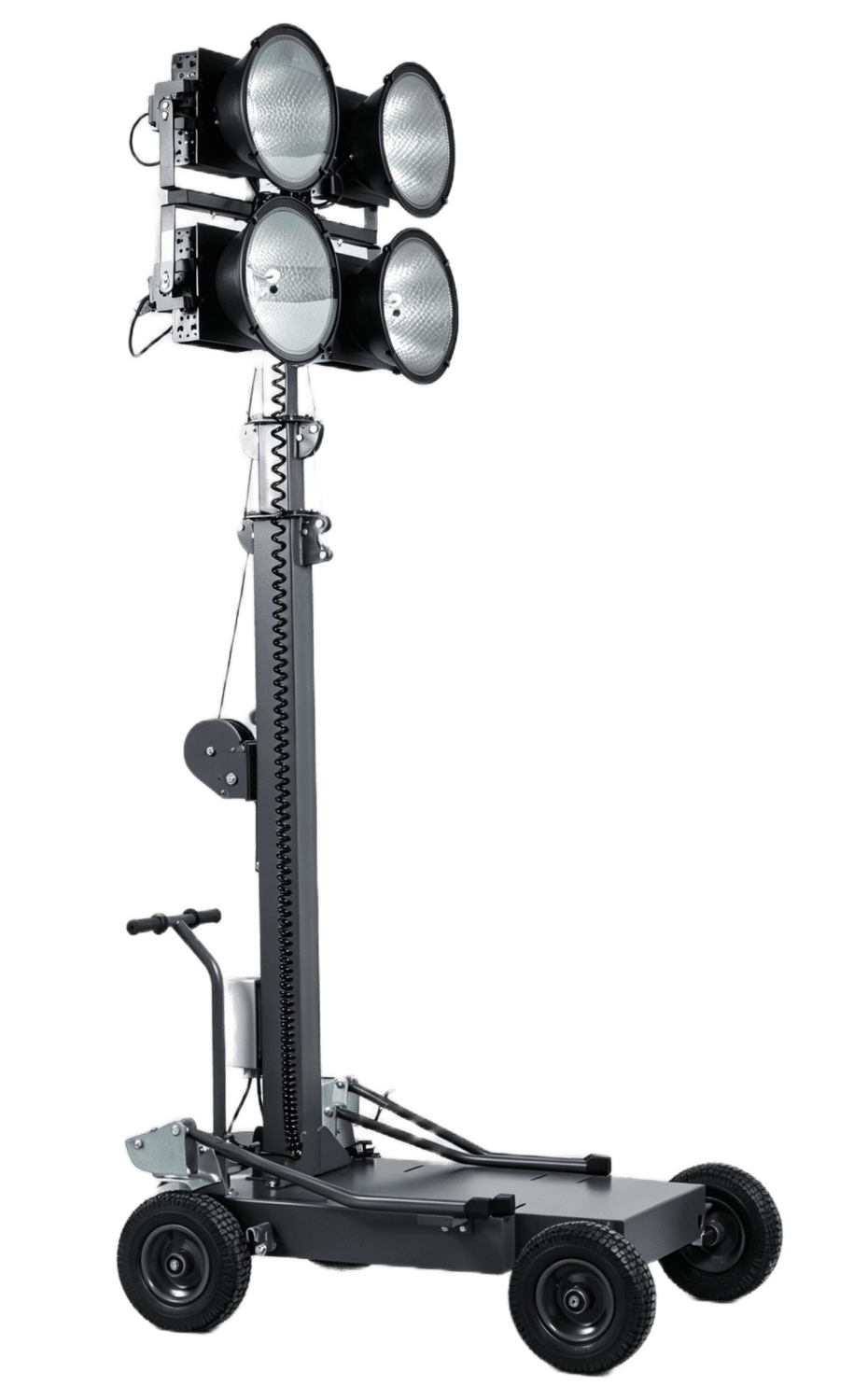

When jobsite needs light spread across a large area, the usual answer is a towed tower and a vehicle to pull it. The YLTC-PRO gives you most of that reach without either. A four-section steel mast winds up to 5.35 m, high enough to cover a work front the way a trailer unit does, on a cart one person can steer into place.
Height like that has to stand firm, and the PRO is built for it. Four support legs drop onto a wide 1.9 m stance, holding the tower level on rough ground and steady at full extension. The steel mast and frame take the knocks of daily site work without complaint.
Running and owning it stay low-effort. A 16A plug powers it from any standard supply, with no fuel and no engine upkeep in the base unit. Add the optional generator platform and the PRO becomes a self-powered tower for work beyond the grid.
Features & benefits
Reach and stability in one cart
Stable at height
Four legs on a wide stance hold the tower firm at full extension and on uneven ground.
Wide coverage
At 5.35 m the mast lights a full work area, close to what many towed towers put out.
Hard-wearing
A four-section steel mast and steel frame take the daily knocks of heavy site work.
Runs on standard power
Plug it into any 16A supply and it's lit — no fuel to buy and nothing to refuel.
Quick to set up
One person levels the four legs and winds the mast to full height by hand in minutes.
Off-grid option
An optional generator platform lets the cart carry its own power away from the grid.
No trailer needed

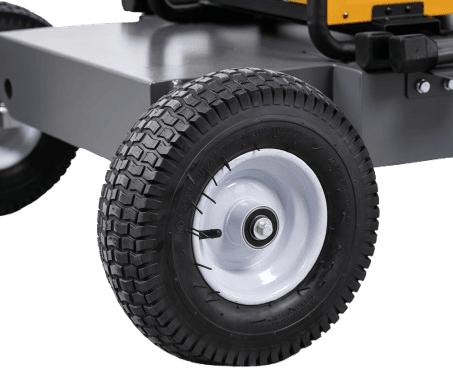

It rolls and steers into place on its own wheels, with no towing vehicle to bring along.
All-Weather Build
IP65 lamps shrug off dust and water, so the unit keeps working through rough site conditions.
Technical Specifications
Safe, easy to use and designed for high performance.
Lighting System | |
|---|---|

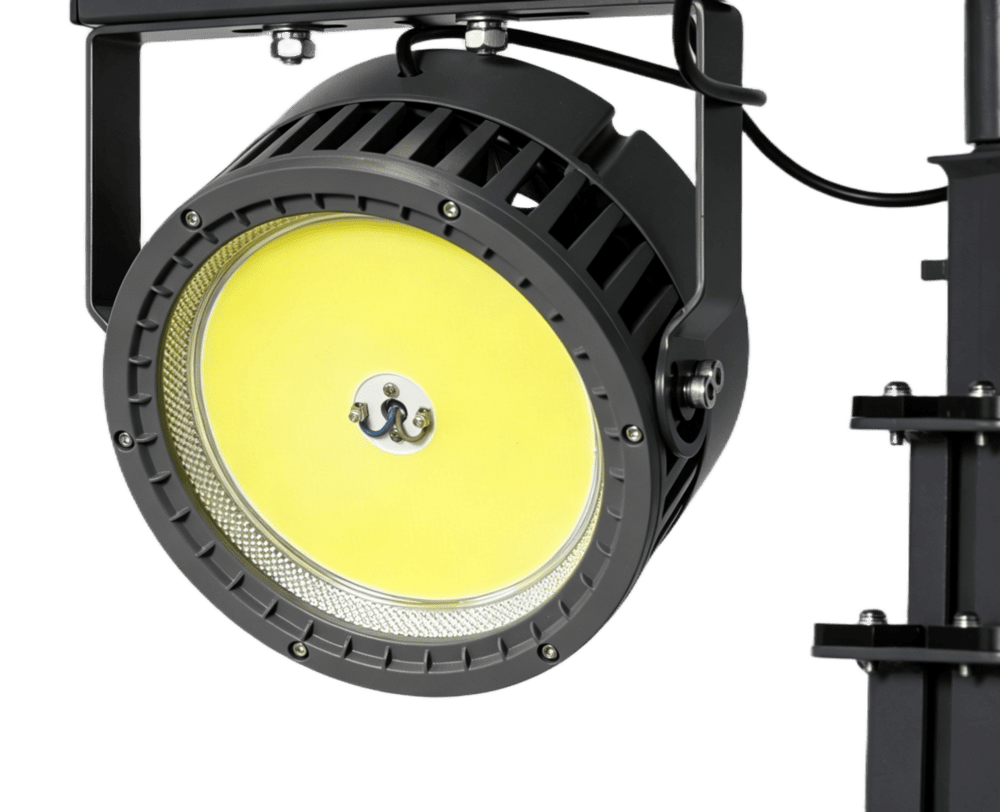

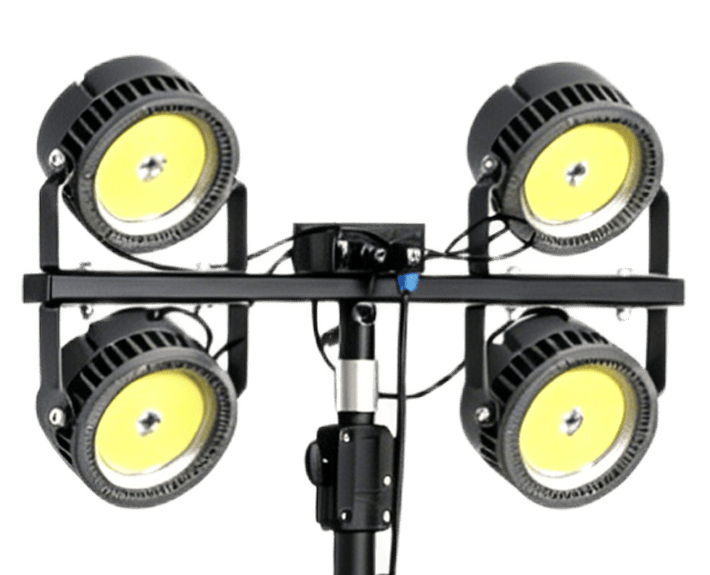

Light Fixtures | 4 × 240W/300W/320W/400W/600W LED |
Power inlet plug | 16A 220V single-phase (Euro plug) |
Total Lumens | 124,800 – 264,000 lm, by configuration |
Code Temperature (K) | 5,000 K (6,500 K optional) |
CRI | 80 – 85, by configuration |
LED Lifespan | Up to 100,000 hr |
Protection Rating | IP65 |
Trailer, Mast & Dimensions | |
|---|---|
Max. Mast height | 17.6 ft / 211" / 5.35m |

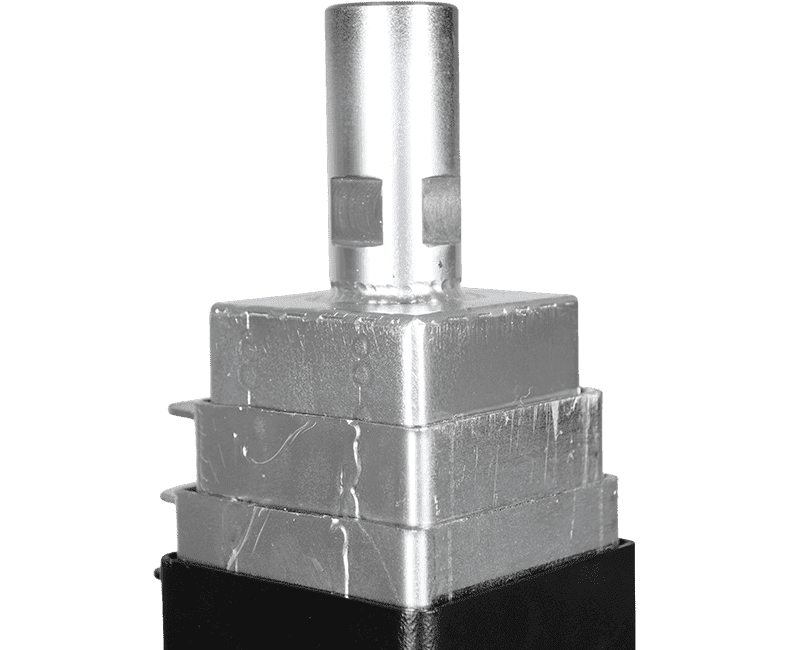

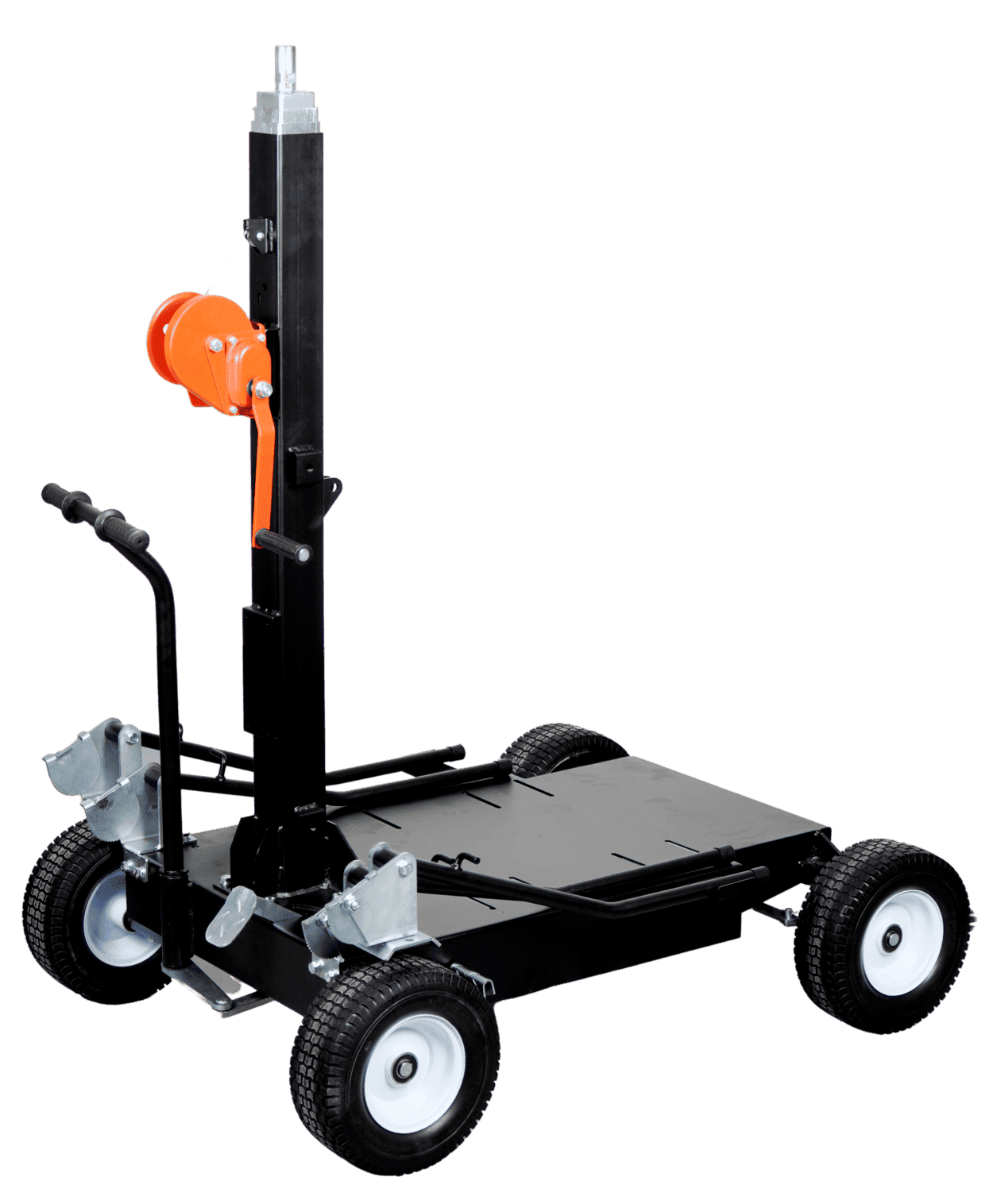

Mast structure & Material | 4-section tubular steel telescopic mast |

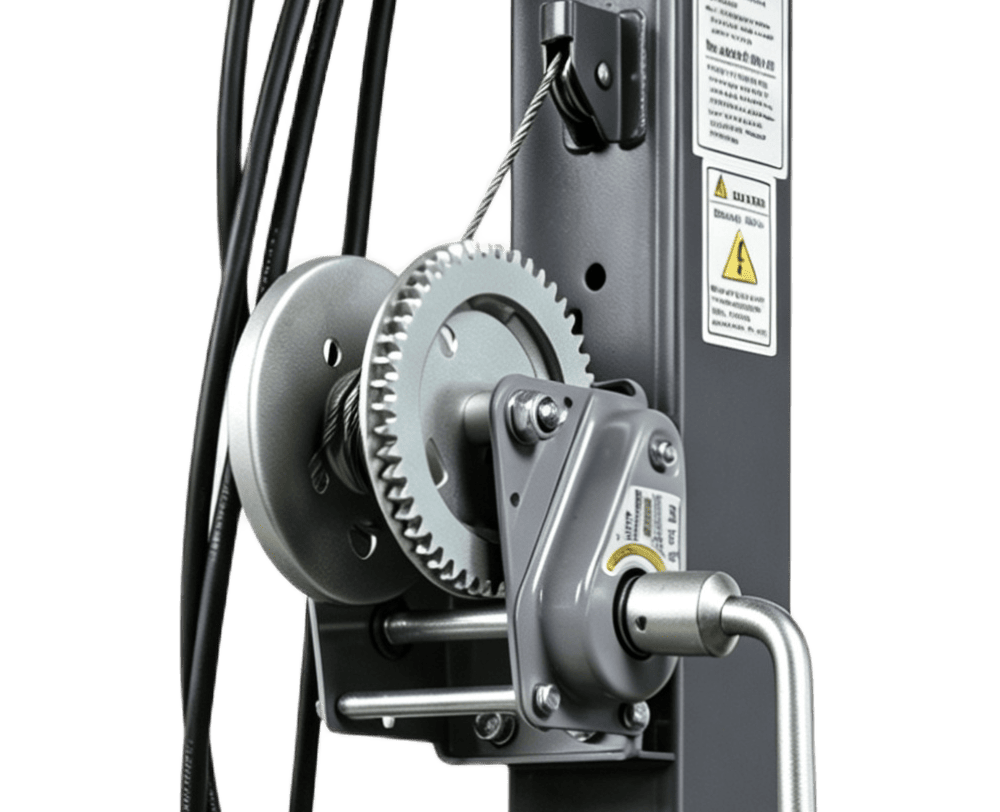

Mast actuation | Manual winch |

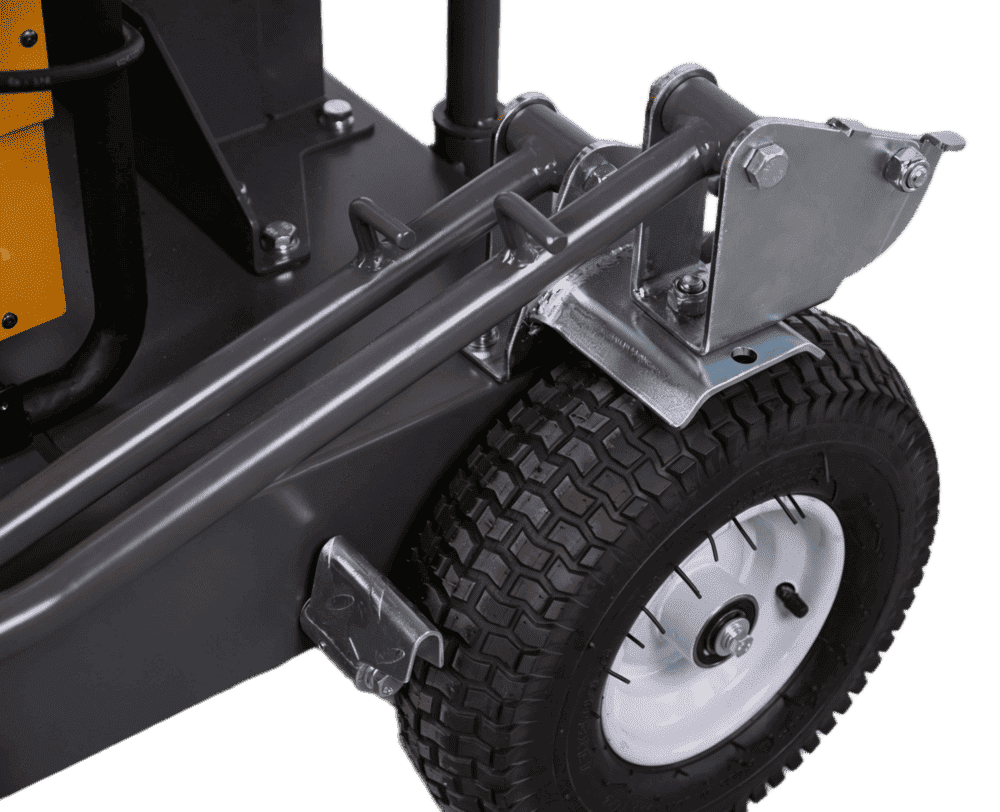

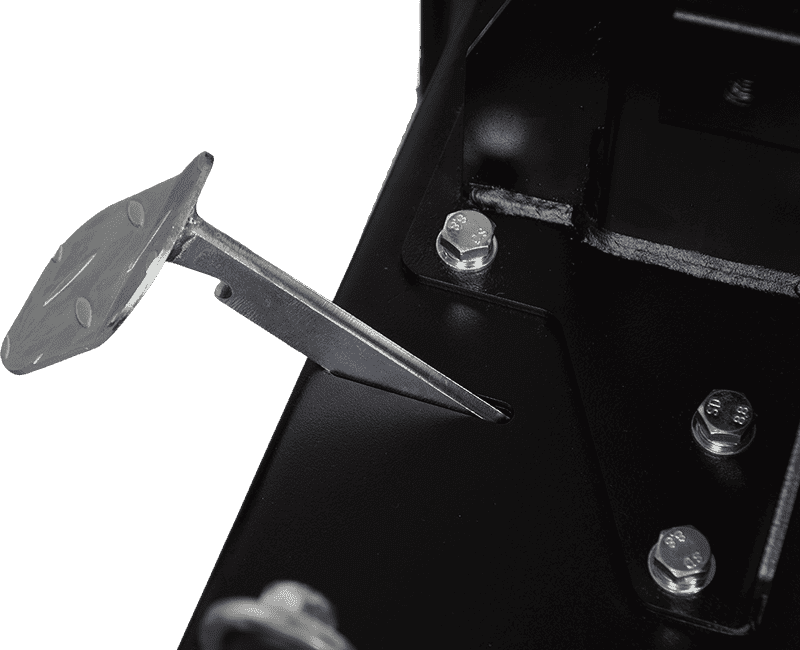

Brake | Foot brake |

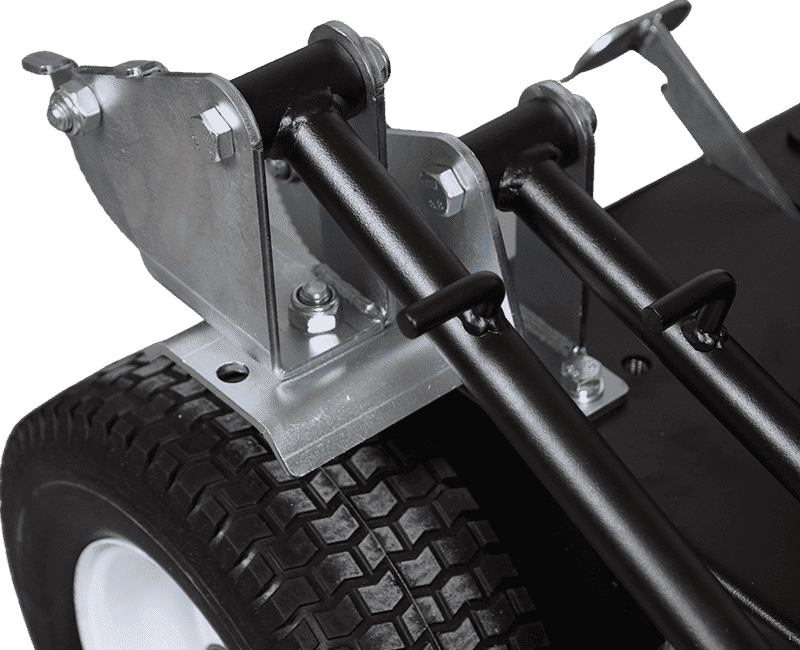

Stabilizing legs | 4 × manual stabilizing legs |
Steering angle | 25° |
Net weight | 101 lb (46 kg) |
Transport dimensions | 50" × 37" × 81" (1.26 × 0.945 × 2.05 m) |
Product Detail View
