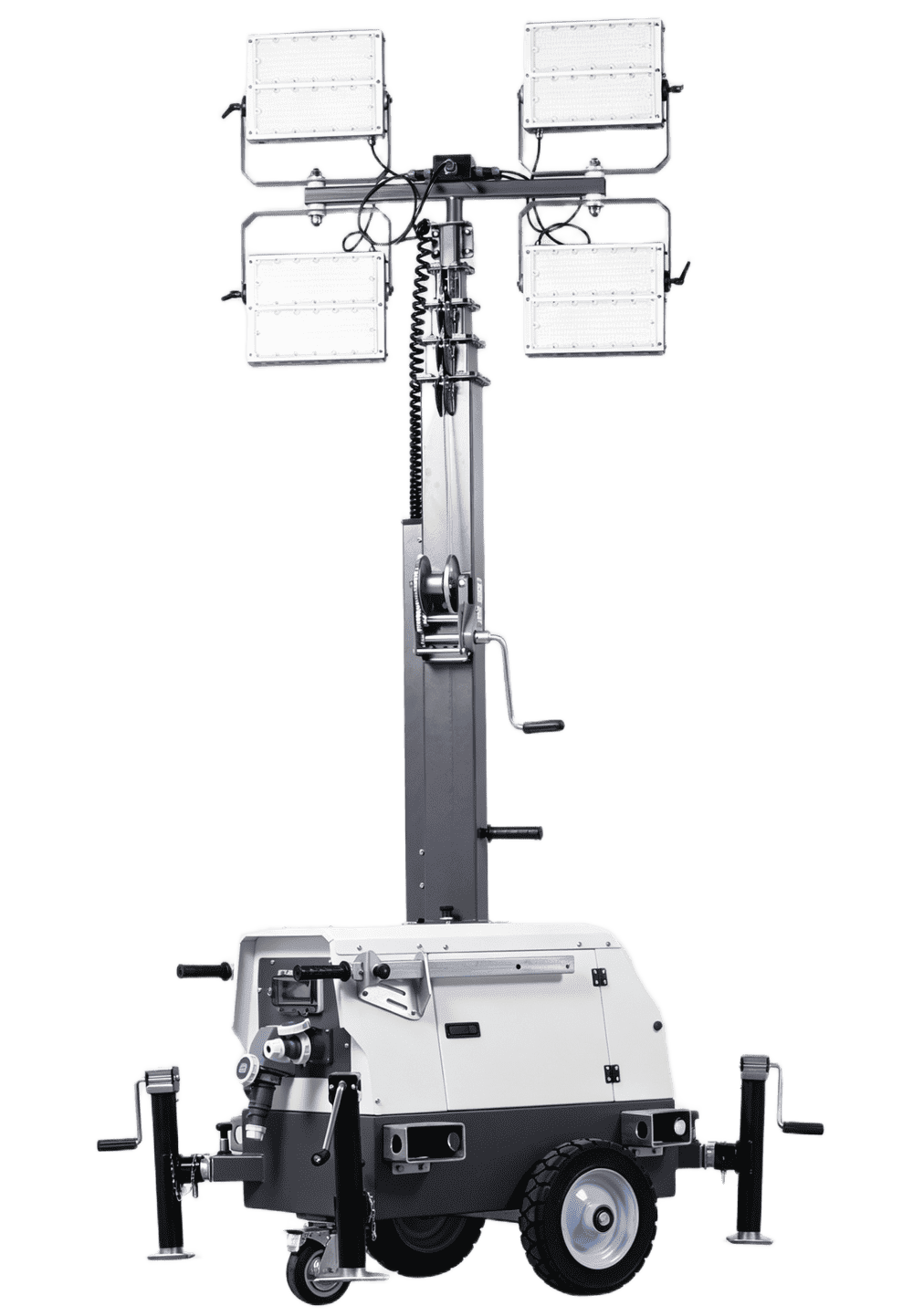

YLTL-CGLINK Series · Plug-In Cart Light Tower
Full tower lighting on a cart you can roll anywhere
A simple, low-cost way to light a work area. The YLTL-CG takes power from any site supply and lifts four 240-watt LED lamps to 7.78 m. Air-filled tires let one person move it over dirt and gravel, and it links with two more units to cover more ground.
Request a QuoteProduct Overview
The YLTL-CG keeps the whole job simple. There is no engine on board, so it works off the power you already have on site, and the only thing it costs to run is the electricity it uses. For a contractor or rental fleet counting hours, that is a real gap against a diesel tower.
The light itself holds up its end. Four 240-watt LED lamps on a 7.78 m steel mast throw clean, even light across a work area, and the head turns 340° so you point it from the ground. Link up to three carts off one supply and a single circuit lights a much bigger footprint.
Moving and minding it takes little effort. The air-filled wheels roll over rough ground by hand, four manual jacks level the cart in seconds, and the mast goes up with a hand winch. With no motor, no fuel system and no filters, the only parts to watch are the IP65 lamps, built to last years of nightly use.
Features & benefits
Built to move, made to last
Rolls over rough ground

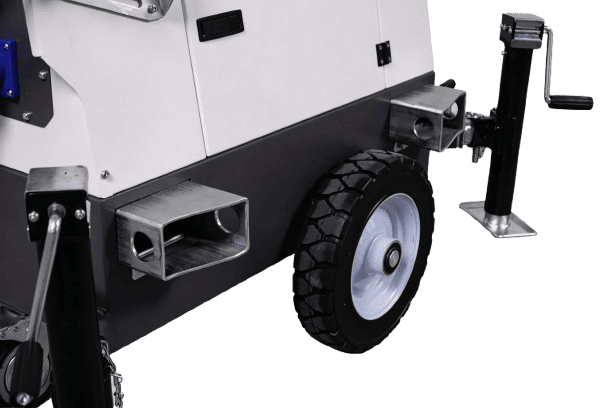

14“ air-filled tires move the cart across dirt and gravel by hand, no forklift needed.
Plug in and go
Runs off any site power supply, with no engine to start and no fuel to buy.
340° lighting
The mast head turns almost full circle, so you point the light without moving the cart.
Sets up fast
Level the four jacks and crank the mast by hand — one person, just a few minutes.
Steady in wind
Four manual jacks hold the cart firm and keep the mast stable at full height.

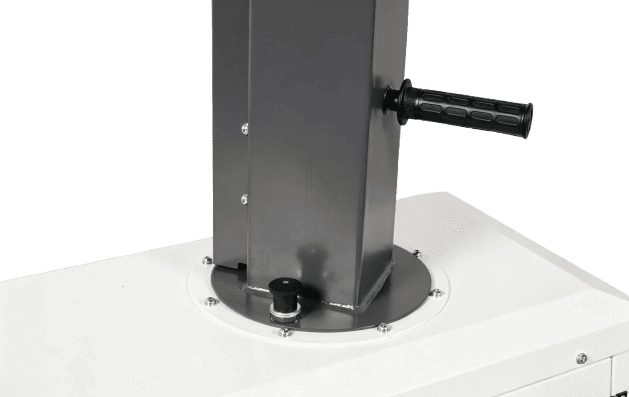

Reinforced Telescopic Mast
The five-section telescopic mast lifts the lamps high enough to cover a wide work area.
Technical Specifications
Engineered for performance & longevity
Wherever a power source is on site, the YLTL-TA is ready to run. From long-haul infrastructure projects to single-night events, it covers the ground that needs light.
Lighting System | |
|---|---|
Light Fixtures | 4 x 240W LED |
Input/output voltage | 50 Hz - 220 V / 60 Hz - 120 V |

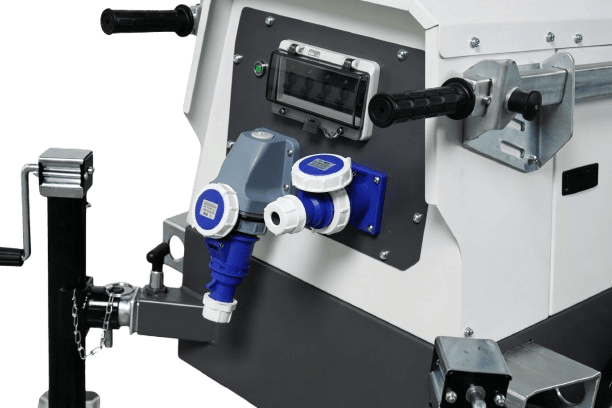

Power inlet & outlet | 15A IEC 60309 (6H) |
Total Lumens | 124,800 lm |
Code Temperature (K) | 5,000 K |
CRI | 80 |
LED Lifespan | 50,000 hr |
Protection Rating | IP65 |
Trailer, Mast & Dimensions | |
|---|---|
Mast rotation | 340° |
Max. Mast height | 25.5 ft / 306" (7.78 m) |
Mast structure | 5-section telescopic mast |
Mast guide system | Deep groove ball bearing + rolling bearing |
Power Cable | Coiled cable secured at top of light |
Stabilizing jacks | 4 × manual jacks with removable bar |
Wind Stability Rating | 88.5 km/h (55 mph)— fully elevated |
Transport dimensions | 50" × 39" × 99" (1.28 × 0.98 × 2.52 m) |
Product Detail View
Let’s light up your jobsite together!
Ready to discuss your project?
Tell us about your site and configuration. We'll send a tailored proposal within 24 hours, including pricing for your specific setup, delivery options and lead times.
Request Solution & Quote
