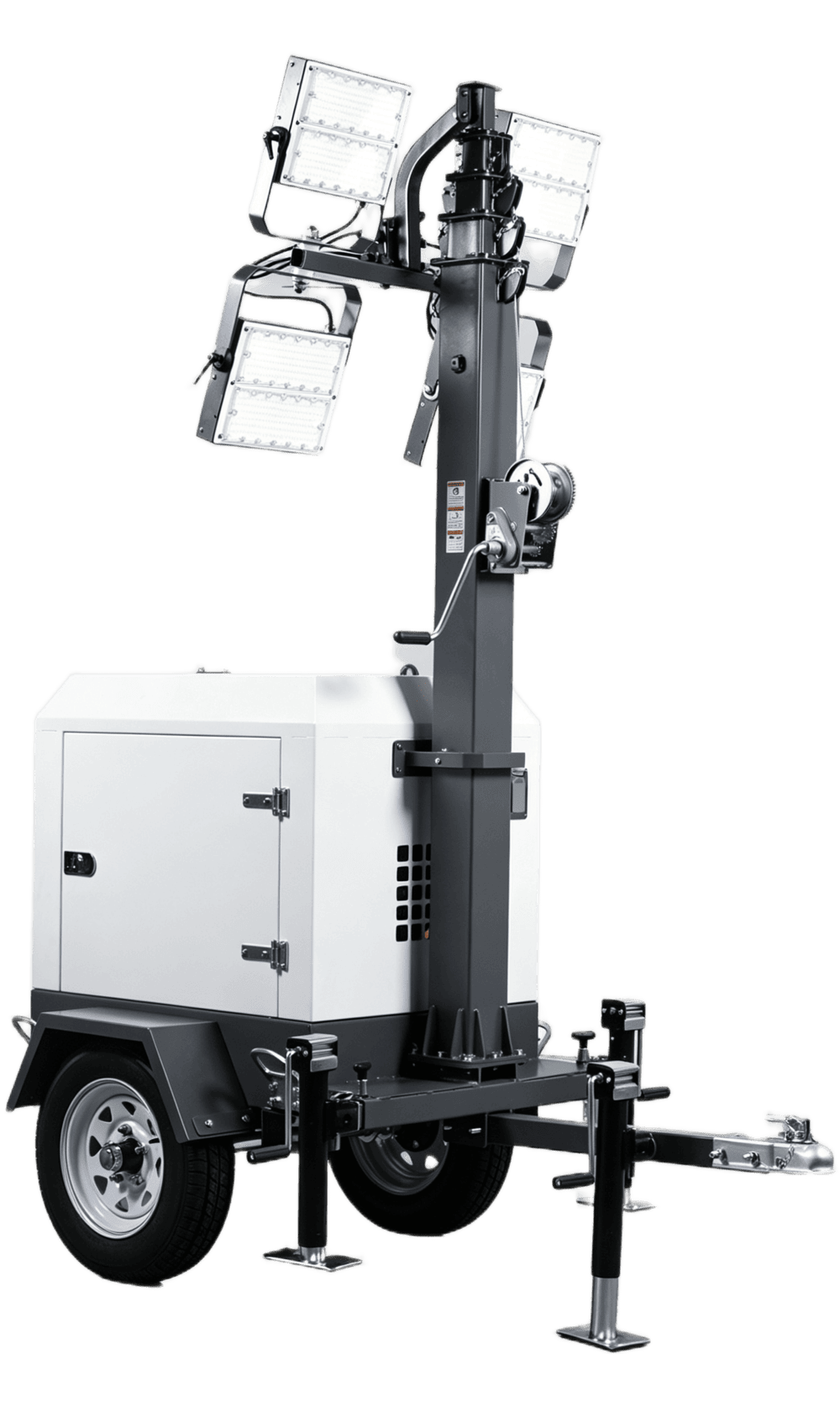

YLTA-4400-CAIRCOOLED Series · Engine-powered Lighting Tower
4 × 400W LED | 160,000 lm | 7.5m | IP65
Compact diesel light tower with full 7.5 m reach. Runs on its own engine with no power supply needed, and tows and stores in half the space of a full-size unit. Self-contained and ready to work.
Request a QuoteProduct Overview
Reliable, durable and compact solution for your jobsites
The YLTA-4400-C is a compact diesel light tower built for construction, roadwork and remote sites where reliable light has to come without a grid. Self-powered and ready to work on arrival, it pairs full tower performance with a small, manageable footprint.
A 4.6 kW engine runs four 400-watt LED lamps, and the mast lifts them to 7.5 m so the light reaches out across the whole site rather than pooling close in. The air-cooled engine keeps things simple, with no coolant to manage and little to maintain. A single tank keeps it running through the shift, with a spare outlet on hand for tools.
Setup and towing stay simple. It pulls behind light vehicle on 2-inch ball or 3-inch pintle coupler at up to 80 km/h, sets level on four manual jacks. The air-cooled engine has no coolant system, so there's less to check and less to go wrong.
Features & benefits
Light and power in one compact tower
Power of its own
An onboard diesel generator lights the site with no grid and nothing to plug into.
Wide coverage

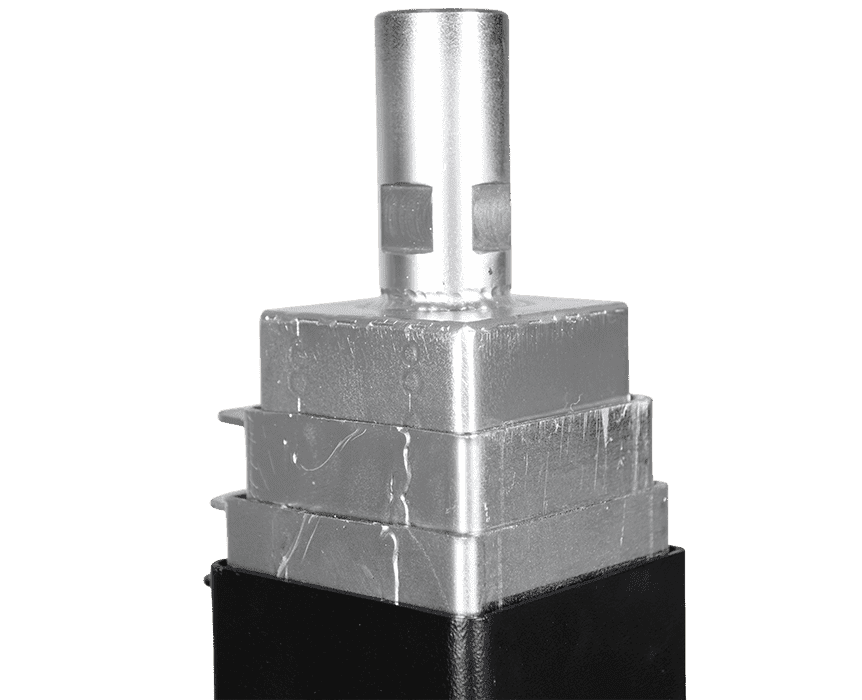

The 5-section telescopic mast lifts the lamps to 7.5 m, covering a wide work area from up high.
Stable at height
Four legs on a wide stance hold the tower firm at full extension and on uneven ground.
Fast to setup
The level the trailer and hand winch raises the mast — one person, a few minutes.
Easy to maintain

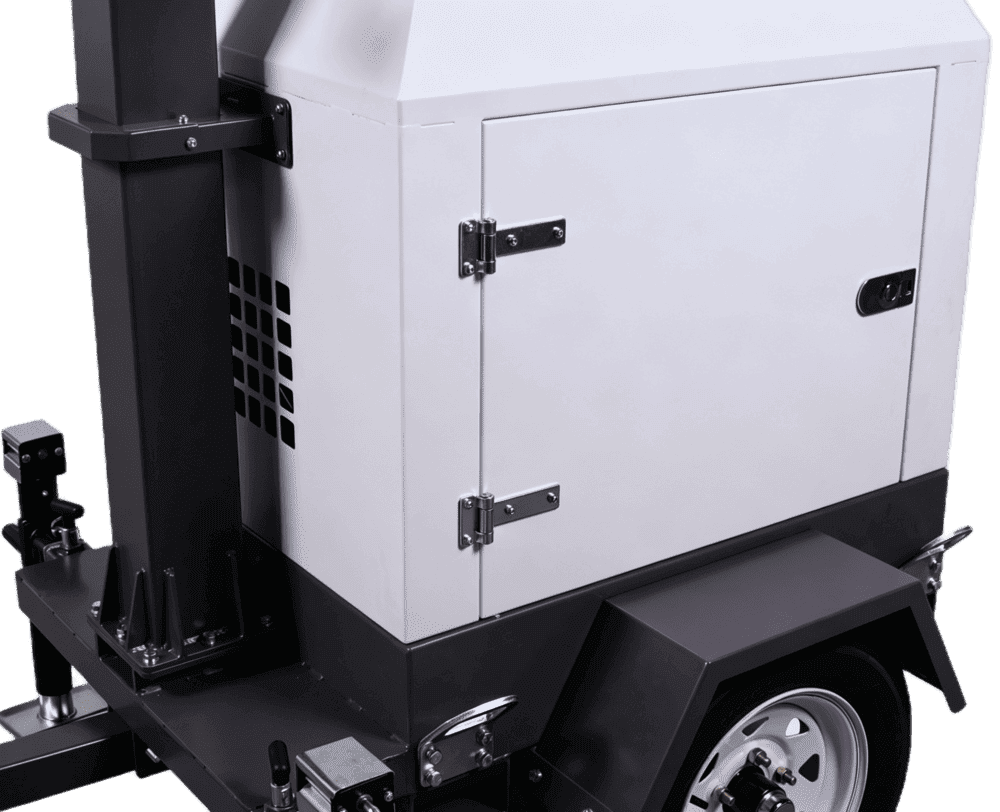

An air-cooled engine runs without coolant, so there's less to check and less to maintain.
Road-ready

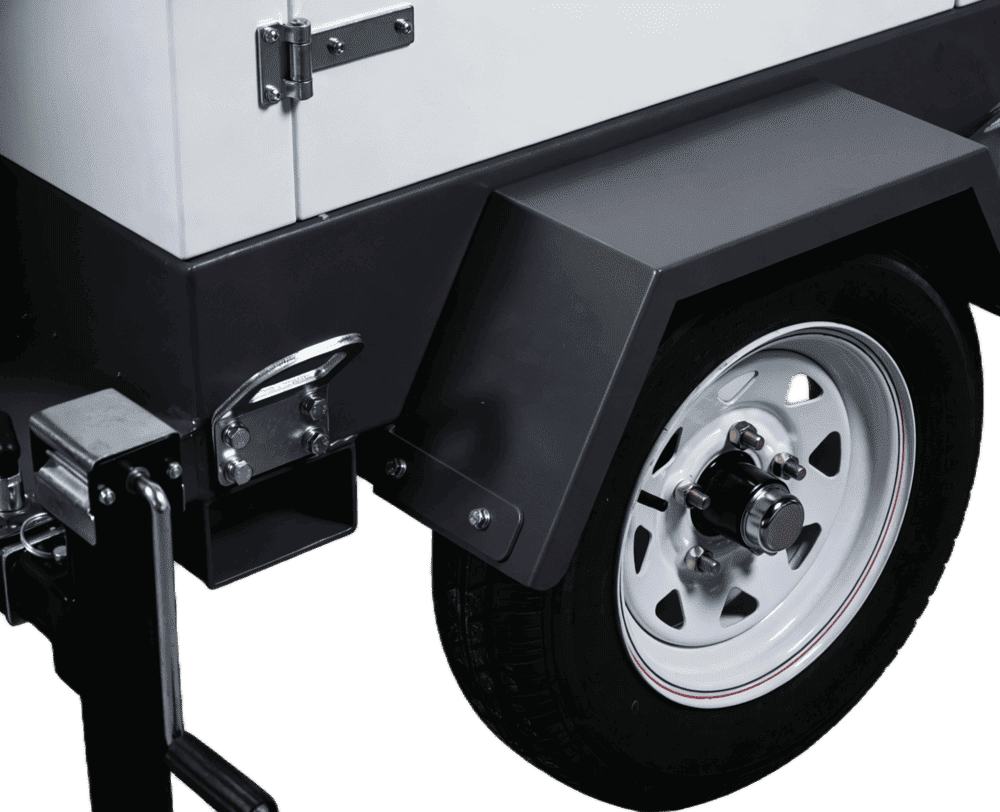

It tows behind a light vehicle on a 2-inch ball or 3-inch pintle coupler at up to 80 km/h.
Compact to ship
A small, light trailer loads far denser in a container, cutting freight cost and storage space.
All-Weather Build
IP65 lamps and a 55 mph wind rating keep it working through dust, rain and rough conditions.
Technical Specifications
Safe, easy to use and designed for high performance.
Lighting System | |
|---|---|

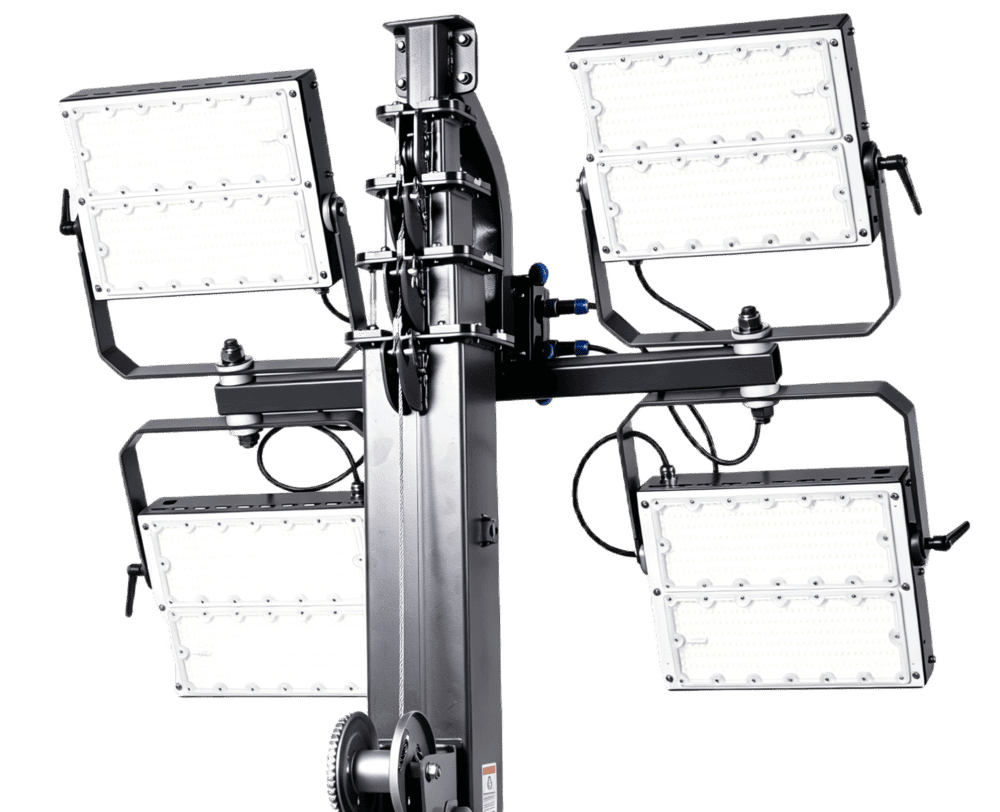

Light Fixtures | 4 × 400 W LED |
Luminous Flux | 40,000 lm per fixture ( 160,000 lm lm total) |
Color Temperature (CCT) | 5,000 K |
LED Lifespan | Up to 100,000 hr |
Protection Rating | IP65 |
Operating Voltage | 220-240VAC / 50Hz/60Hz |
Trailer, Mast & Dimensions | |
|---|---|
Max. Mast height | 24.6 ft (7.5 m) |
Mast structure & actuation | 4-section telescopic mast + Manual winch |
Wind Resistance | 55 mph (88.5 km/h) - fully extended |
Max. towing speed | 50 mph (80 km/h) |
Transport dimensions | 84" × 42" × 98" (2.125 × 1.07 × 2.5 m) |
Engine & Generator | |
|---|---|

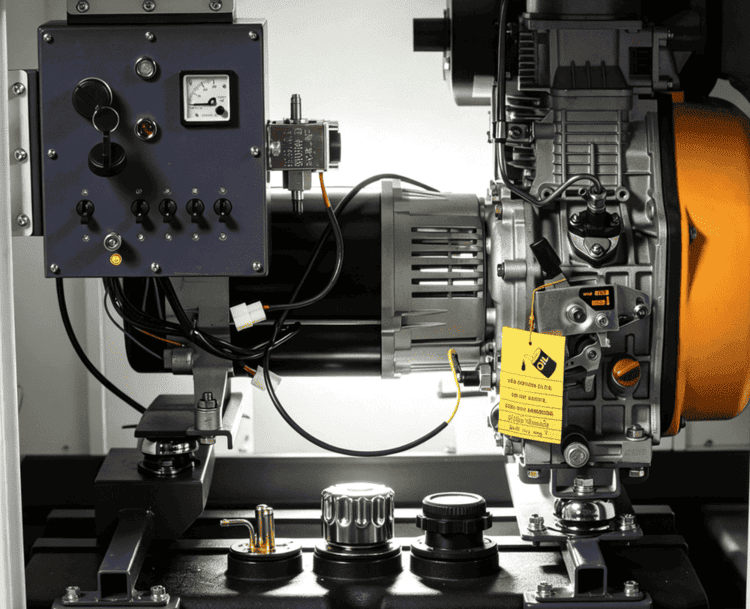

Engine | HIEARNS 186F, single-cylinder, 4-stroke air-cooled diesel |
Aspiration / injection | Naturally aspirated, direct injection |
Rated Power Output | 4.6 kW (50 Hz) / 5 kW (60 Hz) |
Voltage | 220/110V (50 Hz) · 240/120V (60 Hz) AC |
Auxiliary outlet | 16A 220V single-phase |
Fuel tank capacity | 14.5 gal (55 L) |
Running Time at full load | 35 Hours |
