YLTC-MINICART Series · Portable Lighting Tower
Liightweight & Compact | Plug-in | 7.3 ft | 4 × 200W LED

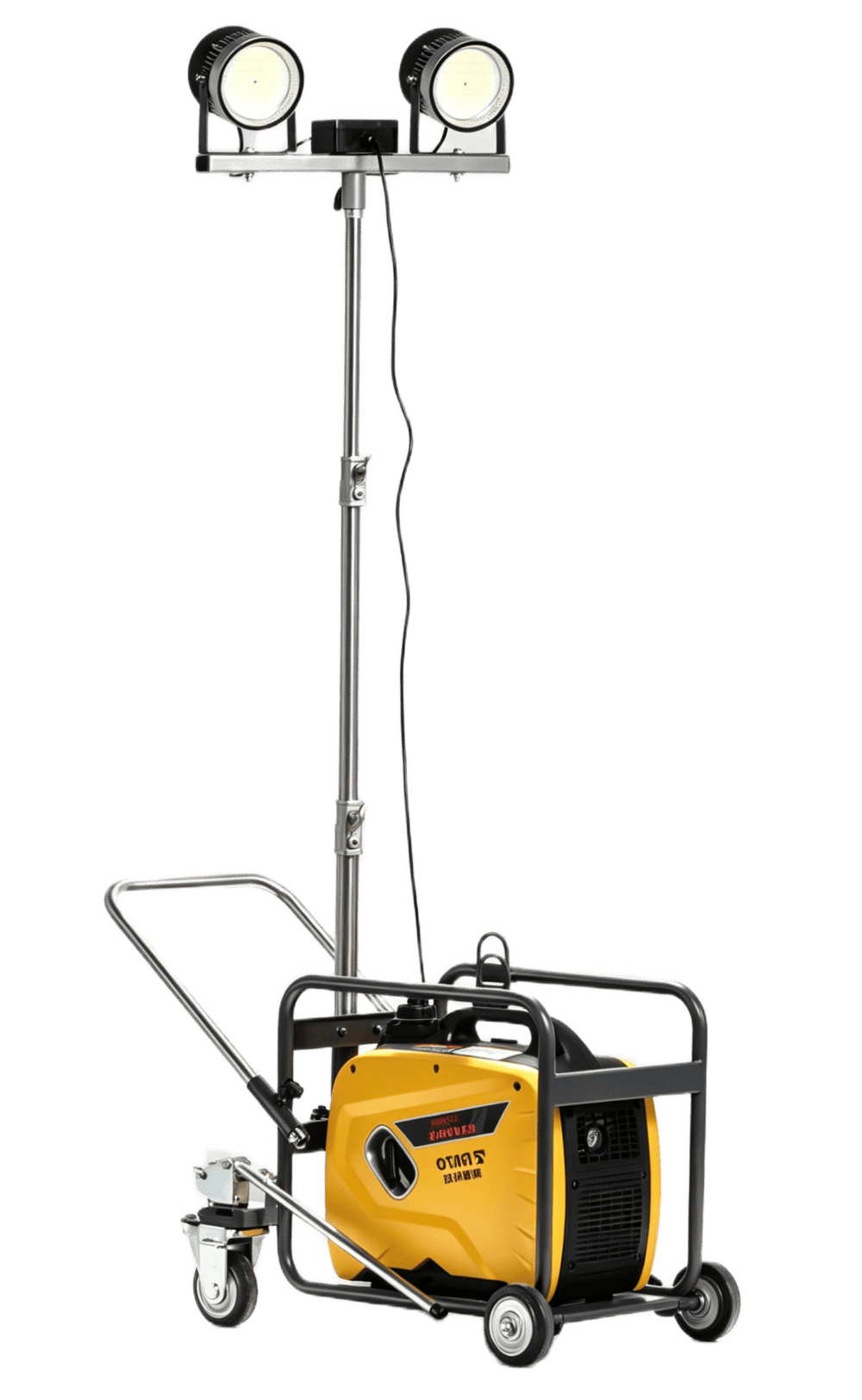

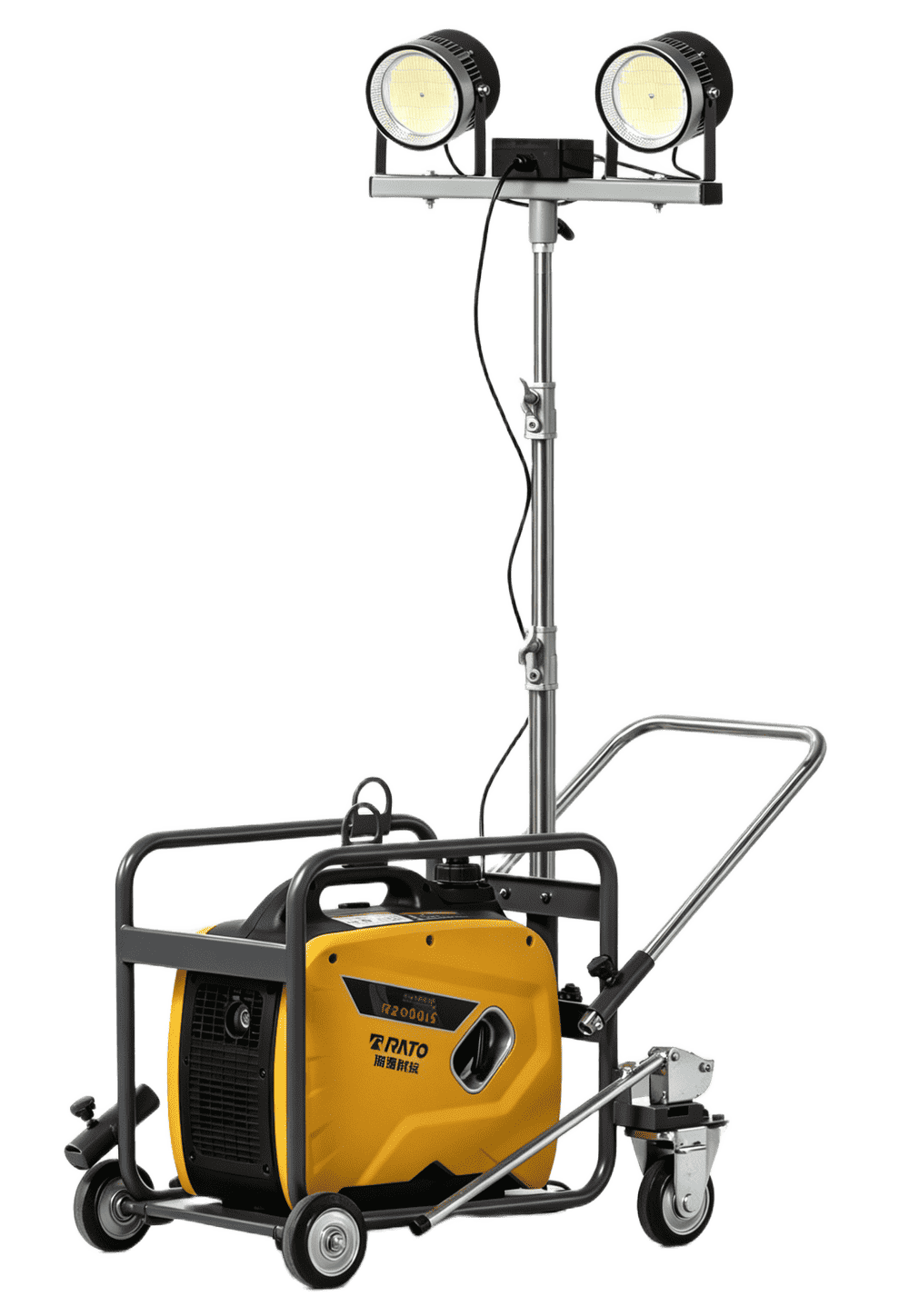

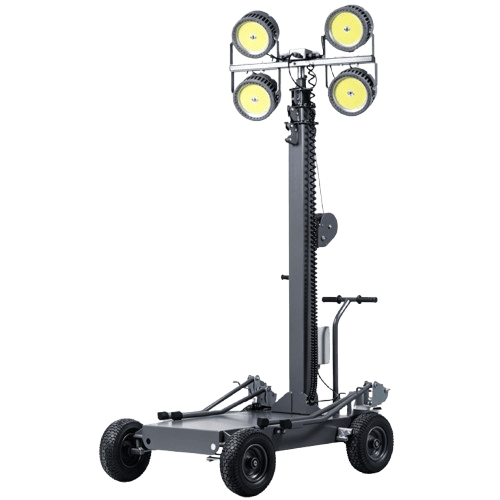

Built for close work in tight and indoor spaces, the YLTC-MINI carries four 200-watt LED lamps on 2.22 m mast and small wheeled base one person moves by hand. It plugs into a standard 16A supply, sets up in under a minute, and takes an optional generator platform when the job is off the grid.
Request a QuoteProduct Overview
Compact, plug-in, made for indoor and close work
The YLTC-MINI is the smallest light in the CART Series, built for indoor work, confined spaces and any job where the light has to come to the task instead of the other way round. It plugs in, rolls into place on a small wheeled base, and one person sets it up in under a minute.

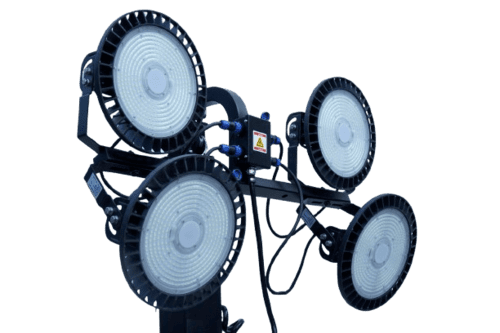

Behind the small size is a serious amount of light. Four 200-watt LED lamps put out around 96,000 lumens, raised on a three-section stainless steel mast to 2.22 m and held there for as long as the job runs. At 5000K and IP65, the output is clean and the fixtures take dust, knocks and water in stride.

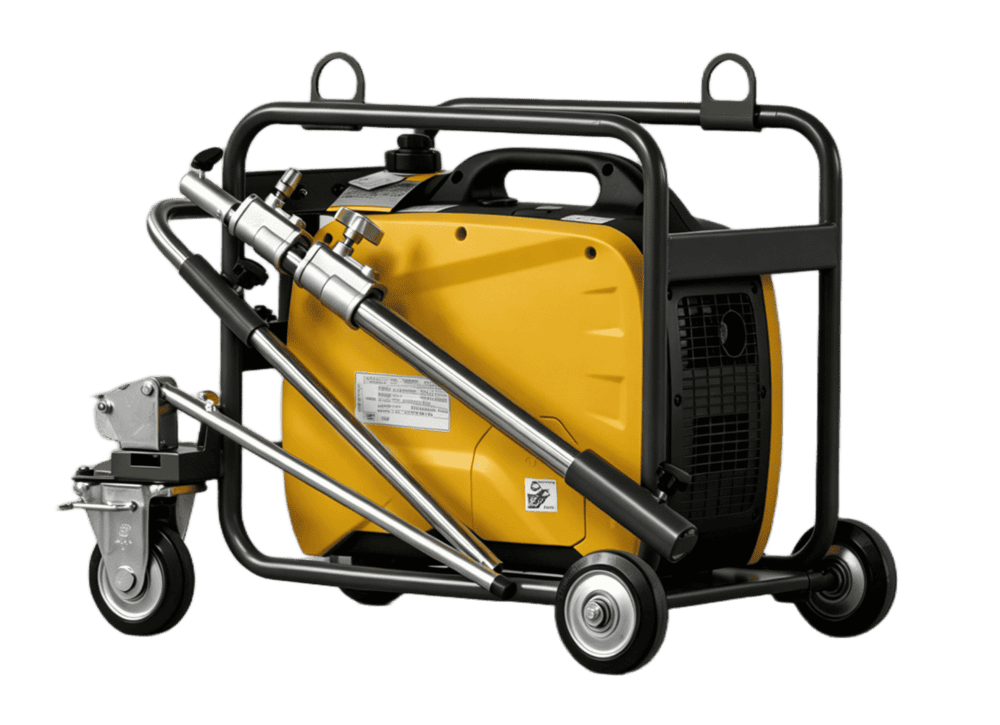

It's the easiest unit in the range to own. There's no engine to feed or service in the plug-in setup, so running cost is just electricity, and the stainless mast suits wet and washdown areas that would rust a standard frame. When power isn't on hand, fit the optional generator platform and the MINI runs on its own.
Features & benefits
Small tower, made for close work
Compact and portable
At 31 by 21 inches stowed, the cart is light enough for one person to lift, wheel and carry.
Plugs straight in
The standard 16A inlet plug powers the unit from any nearby supply, ready in under a minute.
One-person setup
Roll it in, set the two support legs, lock the foot brake and raise the mast — no help needed.
Low running cost
Plug-in power and no engine in the base unit mean the only cost is the electricity it draws.
Fits indoor and tight spaces
Small enough for rooms, tunnels, lifts and confined areas where a full-size tower can't go.
Adjustable telescopic mast
The 3-section stainless mast raises by hand to 2.22 m and stops at any height the work needs.
Technical Specifications
A small tower that earns its place
Lighting System | |
|---|---|
Light Fixtures | 4 × 200W LED |
Power inlet plug | 16A 220V single-phase (Euro plug) |
Total Lumens | 96,000 lm |
Code Temperature (K) | 5,000 K |
CRI | 80 |
LED Lifespan | 50,000 hr |
Protection Rating | IP65 |
Trailer, Mast & Dimensions | |
|---|---|
Max. Mast height | 7.3 ft (2.22 m) |
Mast structure & Material | 5-section stainless steel telescopic mast |
Mast actuation | Manual |
Brake | Foot brake |
Stabilizing legs | 2 × manual support legs |
Wheels | 5-inch rubber wheel |
Generator platform | Optional |
Transport dimensions | 31" × 21" × 25"（0.788 × 0.525 × 0.633 m |
