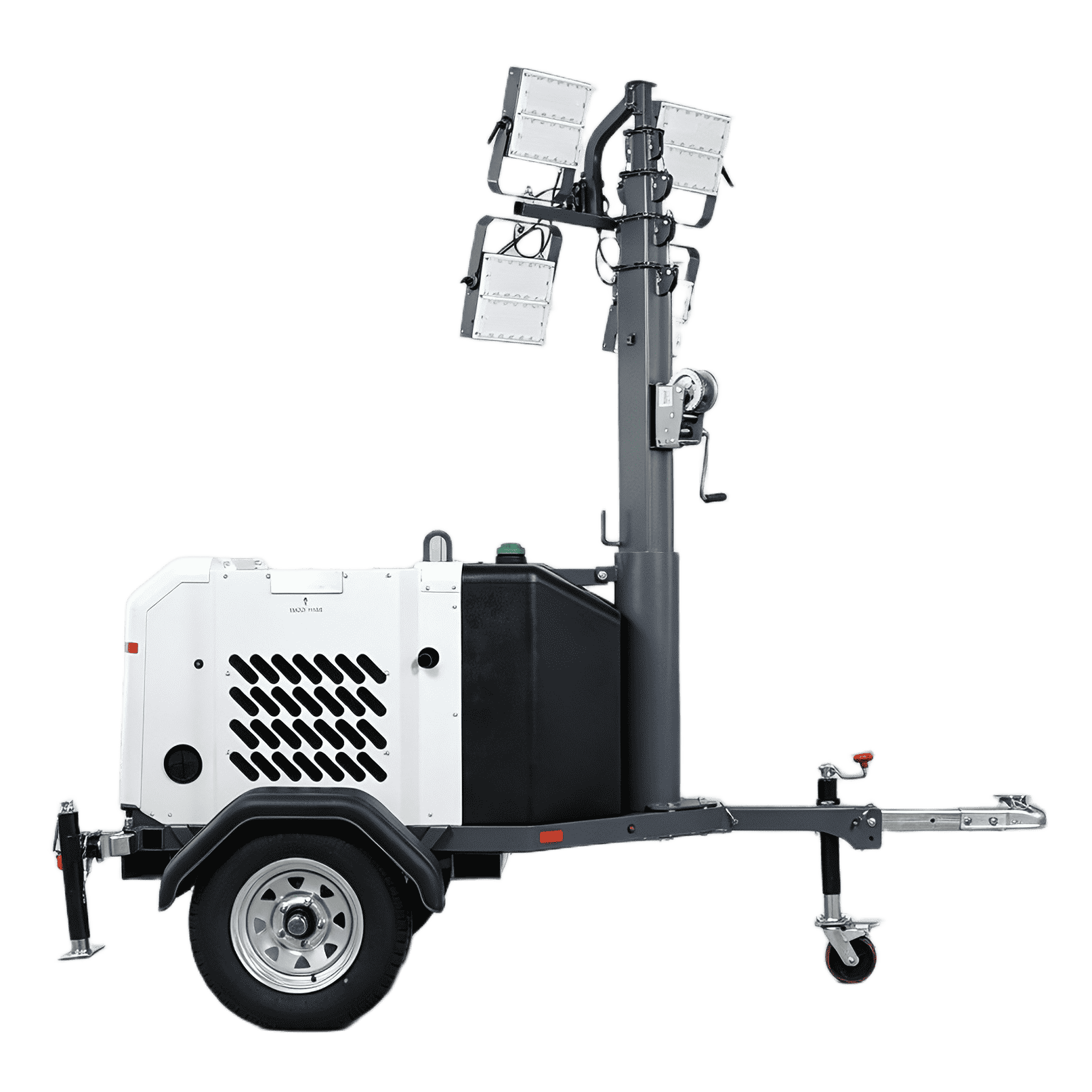

yltw a mobile lighting tower 1

YLTW-AWater-Cooled Series · Engine-powered Lighting Tower

Built for round-the-clock illumination

The YLTW-A delivers dependable mobile lighting for demanding outdoor operations where long working hours are the norm. With water-cooled diesel engines, a 280 L fuel tank, and up to 370 hours of full-load runtime, it reduces refueling interruptions while keeping worksites illuminated. Ideal for mining, infrastructure construction, and remote projects that rely on continuous lighting.
Request a Quote

Product Overview

Built for continuous work in demanding conditions

Some jobs measure progress in days, not hours. Mining operations, major infrastructure work, and emergency response often run 24/7 without breaks. The YLTW-A was designed for exactly that—sustained diesel power paired with water-cooled engine cooling that maintains steady output across extended shifts in harsh conditions. Fuel tank capacity to 280L means the tower runs for multiple days before refueling stops interrupt the work.
Water cooling is the key difference. Where air-cooled engines struggle in high-temperature sites—mines, desert construction, tropical climates—the YLTW-A engine stays stable and dependable. Nine engine options across PUSHEN, Weiwel, Kubota and Changchai platforms let you match output and grid frequency to your market. Power ranges from 3 kW to 9.5 kW. Electrical output feeds dual 16A outlets for lighting and auxiliary equipment. The steel mast structure holds firm to 88.5 km/h wind, and LED fixtures scale from 240W to 600W depending on coverage need.
This tower is purpose-built for mining operations, major infrastructure projects, and emergency response in hot climates where cooling performance directly affects reliability. Anywhere the combination of heat, continuous operation, and uninterrupted power matters—that's where the YLTW-A earns its place.

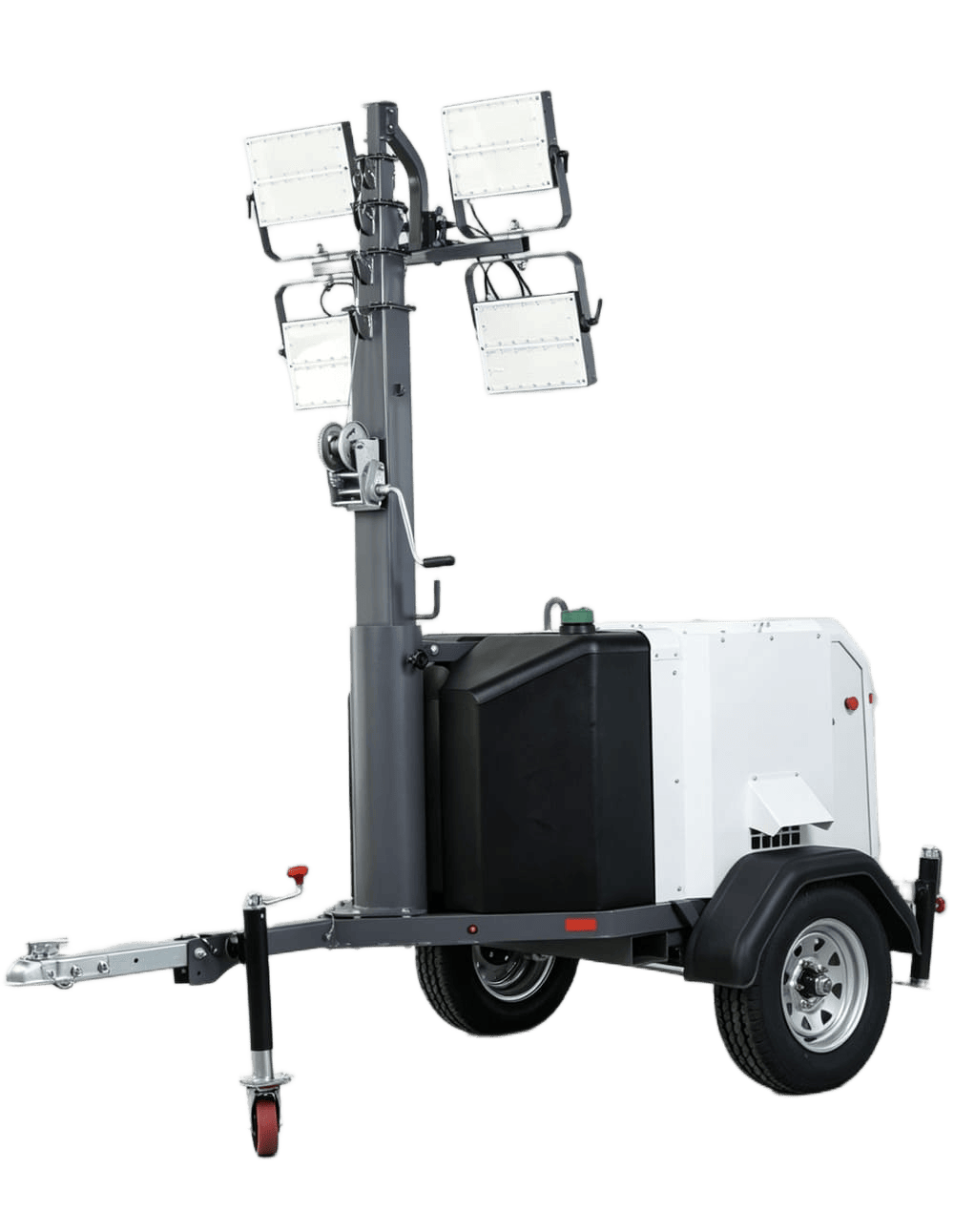

1 (1)

Features & benefits

Built for Continuous, High-Performance Operations

The YLTW-A delivers sustained power and reliability where sustained power matters most. Every feature is engineered around one objective: keep the light on, keep the engine cool, keep the work moving.

Water-Cooled Stability

Maintains consistent engine output through 24-hour shifts in high-temperature environments where air-cooled systems lose efficiency.

Extended Runtime

Fuel capacity to 280L supports 55–370 continuous operating hours, cutting refueling interruptions and logistics overhead.

Stable and Durable

Steel mast structure rated to 88.5 km/h wind, IP65 fixture protection, and CE compliance ensure reliability in harsh conditions.

Multiple Power Options

Five configurations (9KP, 3KR, 3KK, 6KK, 6KC) provide flexibility from 3 kW to 9.5 kW output across different markets and grid frequencies.

Flexible Mast Heights

Mast extension to 9 m covers larger areas per unit, reducing total equipment required and simplifying site layout.

Dual Power Output

Twin 16A 220V outlets deliver lighting and auxiliary equipment power from a single unit, eliminating separate generators.

Optimal Beam Placement

340-degree mast rotation positions light precisely across work areas, reducing setup time and equipment footprint.

Rapid Relocation

Compact trailer dimensions and highway-rated towing speed enable efficient repositioning between multiple work locations or projects.

Technical Specifications

Engineered for long runtime, reliable towing and controlled illumination

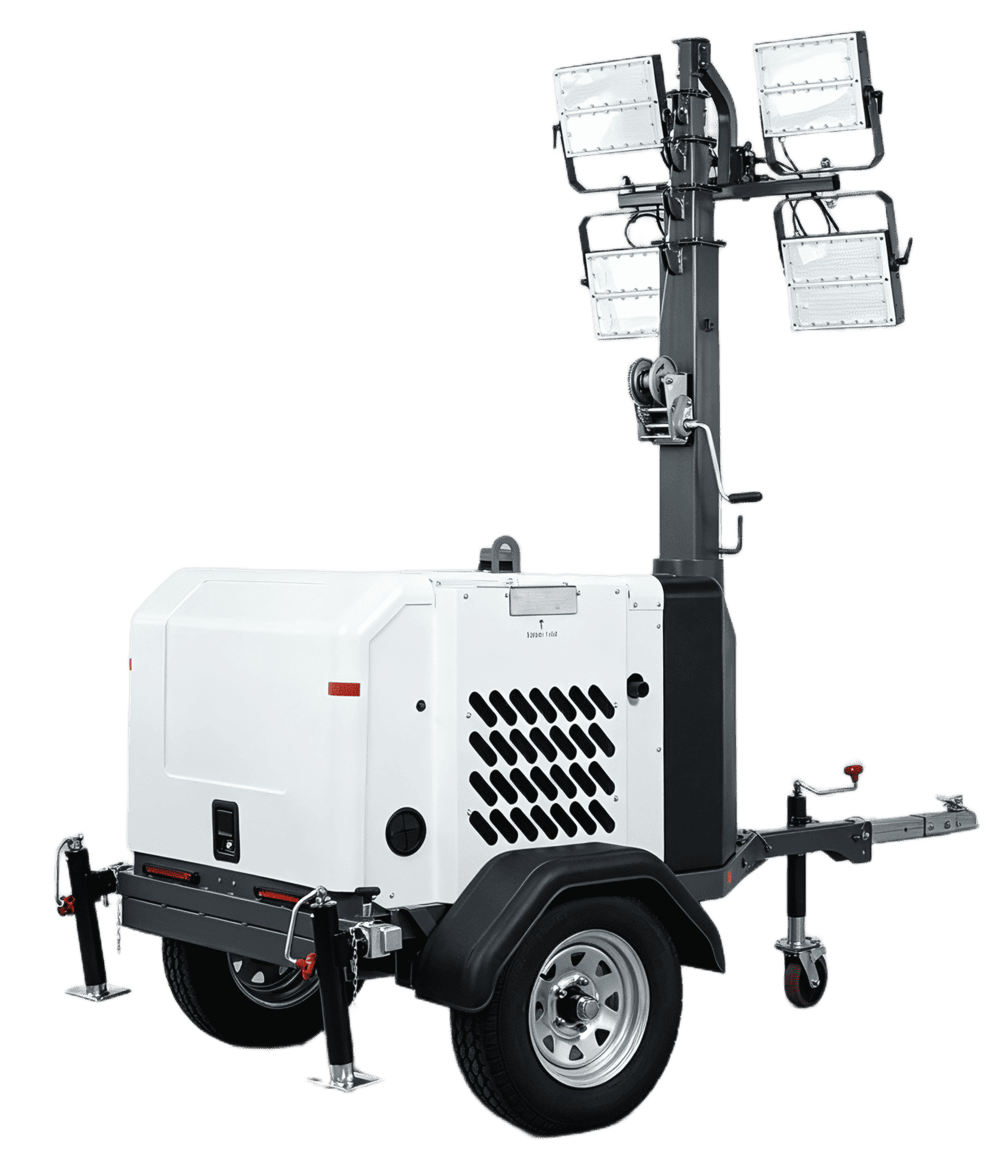

2 (1) (2)
Lighting Tower & General Specifications
Transport Dimensions
2.855 × 1.505 × 2.535 / 2.622 m (L × W × H)
Maximum Mast Height
7.5 / 9 m
Mast Construction
5-section tubular steel
Mast Raising System
Manual winch
Mast Rotation
340°
Mast Guidance
Deep-groove ball bearing and rolling bearing
Mast Power Cable
Coiled cable secured at light assembly
Trailer Suspension
Unbraked leaf-spring axle
Stabilizers
3 removable manual jacks
Towing Coupling
2-inch ball coupler / 3-inch pintle ring
Trailer Lighting
Tail, turn, reverse and brake lights
Maximum Towing Speed
105 km/h
Wind Resistance
88.5 km/h (Fully Extended)
Engine & Alternator Specifications
Model
YLTW-A-9KP
YLTW-A-3KK
YLTW-A-6KK
YLTW-A-6KC
Engine Brand
Runwei
Kubota
Kubota
Changchai
Engine Model
2B06G3/5
Z482-E3B
D1105-E3B
CZ380Q
Cylinders
2
2
3
3
Engine Type
V-shaped · water-cooled · 4-stroke · Naturally aspirated
Inline · water-cooled · 4-stroke · Naturally aspirated
Rated Speed (rpm)
1500/1800
1500/1800
1500/1800
1500/1800
Rated Prime Power
3 kW
3 kW
6 kW
6 kW
Fuel Capacity
280 L
Full-Load Runtime
370 h
370 h
240 h
255 h
Alternator Type
Self-excited, 2-pole, single-phase
Rated Frequency
50 / 60 Hz
Rated AC Voltage
220 / 110 V (50 Hz); 240 / 120 V (60 Hz)
Auxiliary Power Outlets
2 × European-standard 16 A / 220 V, single-phase

Product Detail View

img 4377 (1) (1) (1)

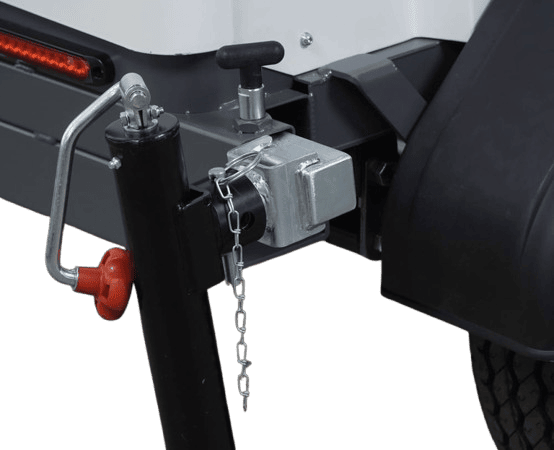

dsc5621 1 1 上午1.01.13 removebg preview (1)
img 4395 (1)

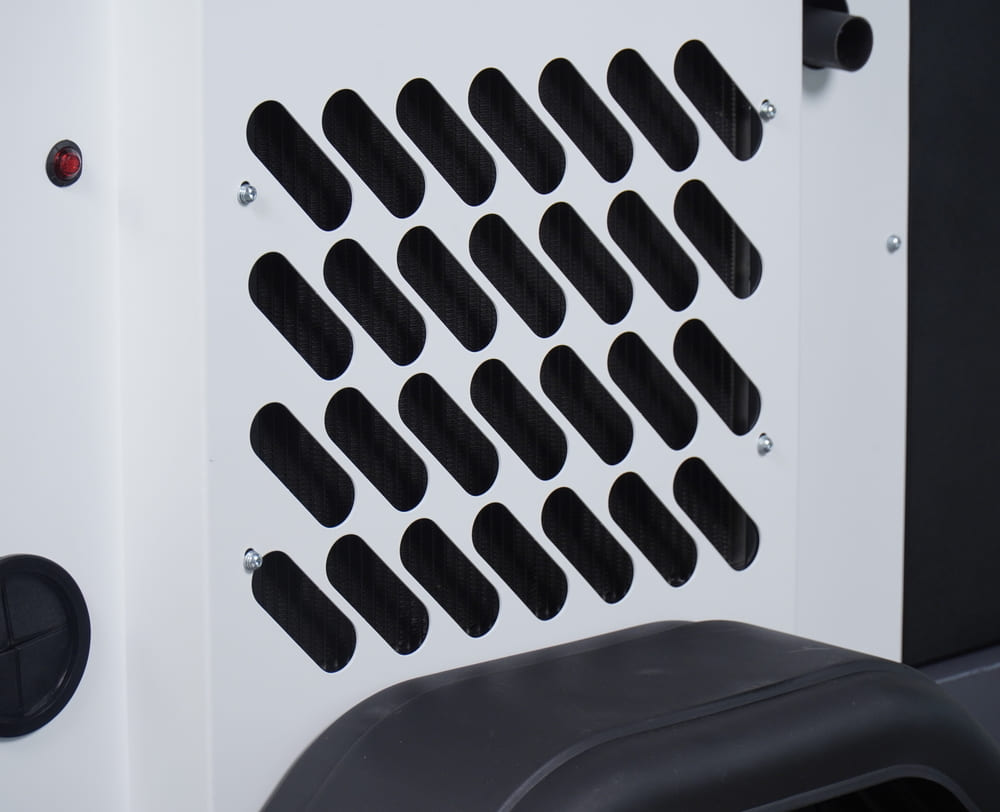

dsc5623

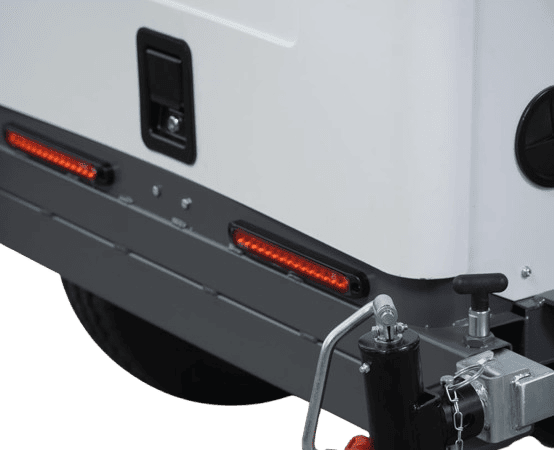

dsc5620 removebg preview (1)

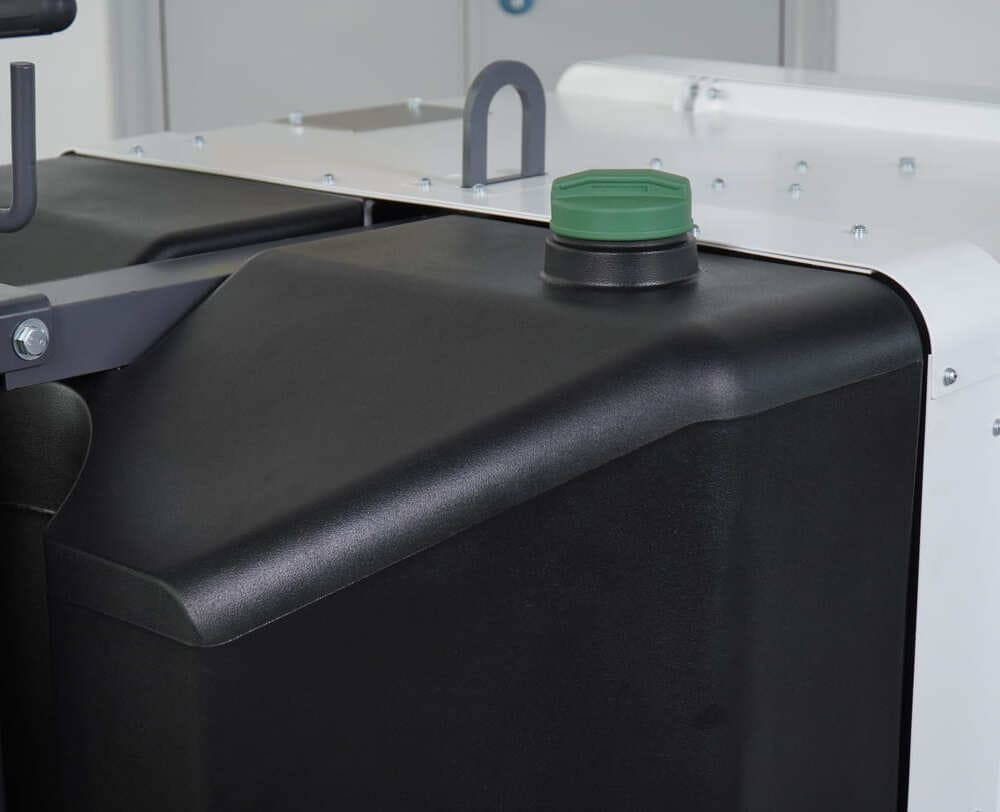

dsc5632
img 4370
foot
Heavy-duty construction. Long runtime. Reliable towing

Ready to light up your jobsite?

When the work cannot stop at sunset, YLTW-A keeps your site illuminated and your operation moving. Get in touch to discuss your requirements and receive a configuration tailored to your project.
