YLTW-GWater-Cooled Series · Engine-powered Lighting Tower
Compact Mobility · Easy Deployment · Extended Operation

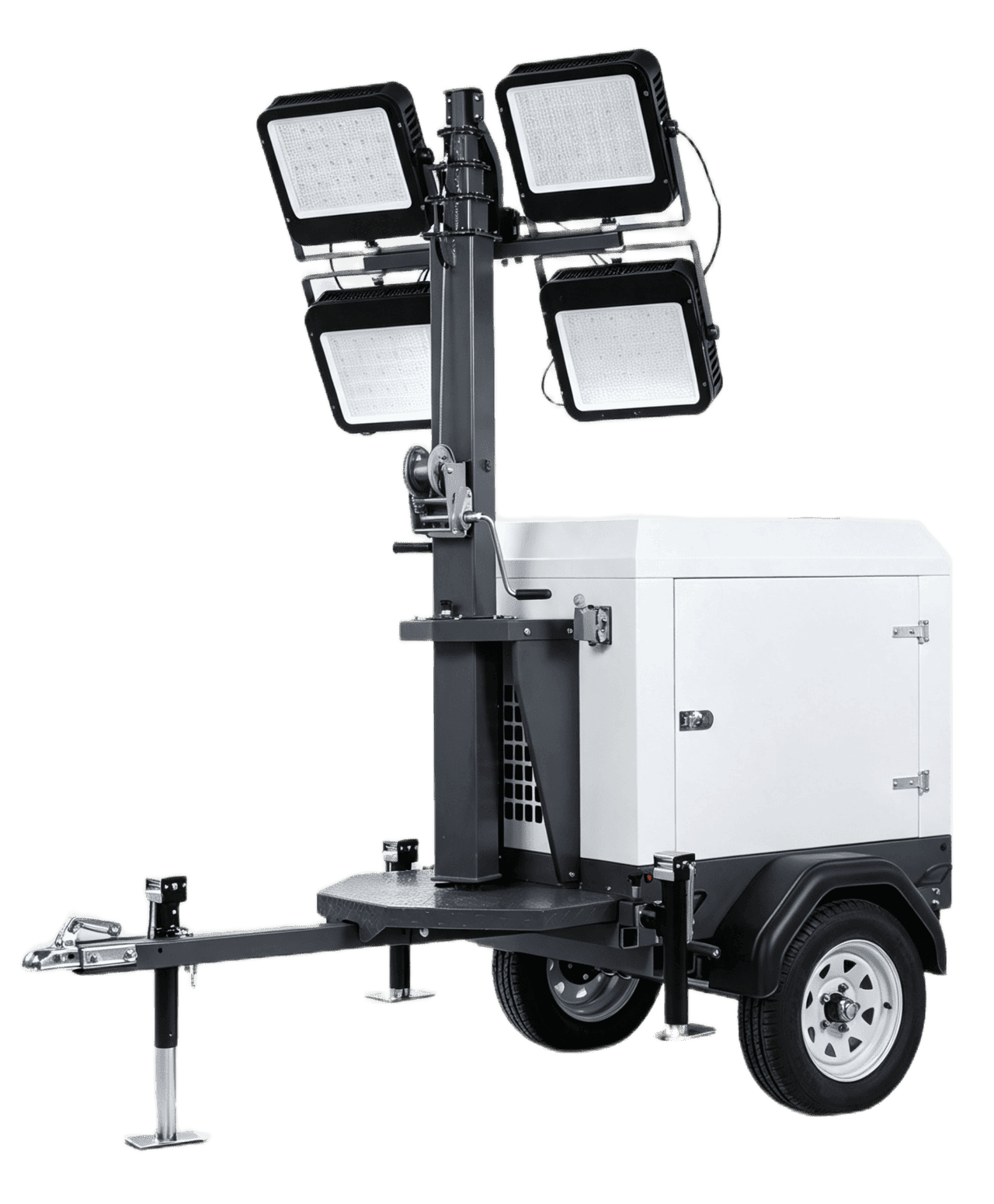

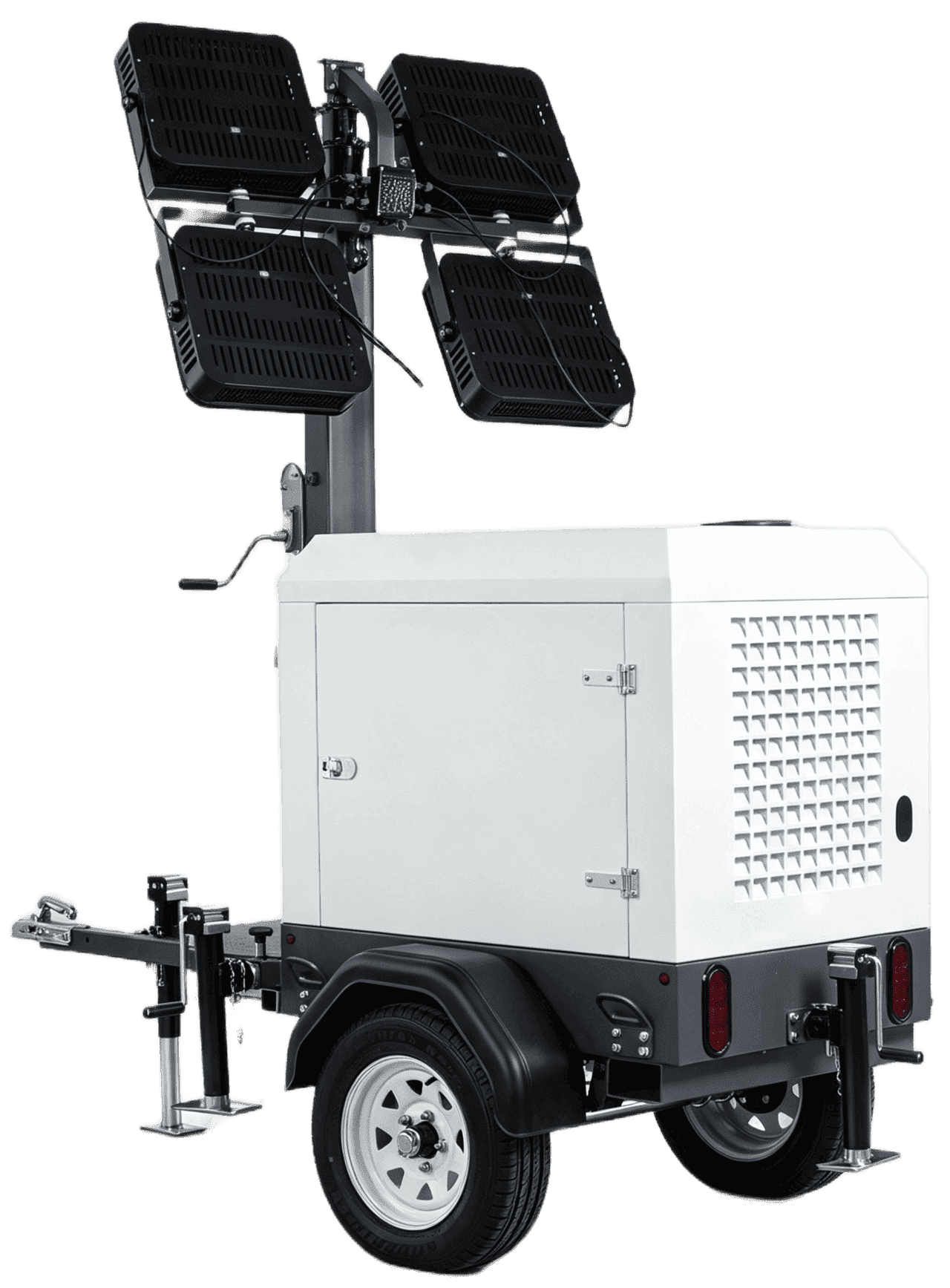

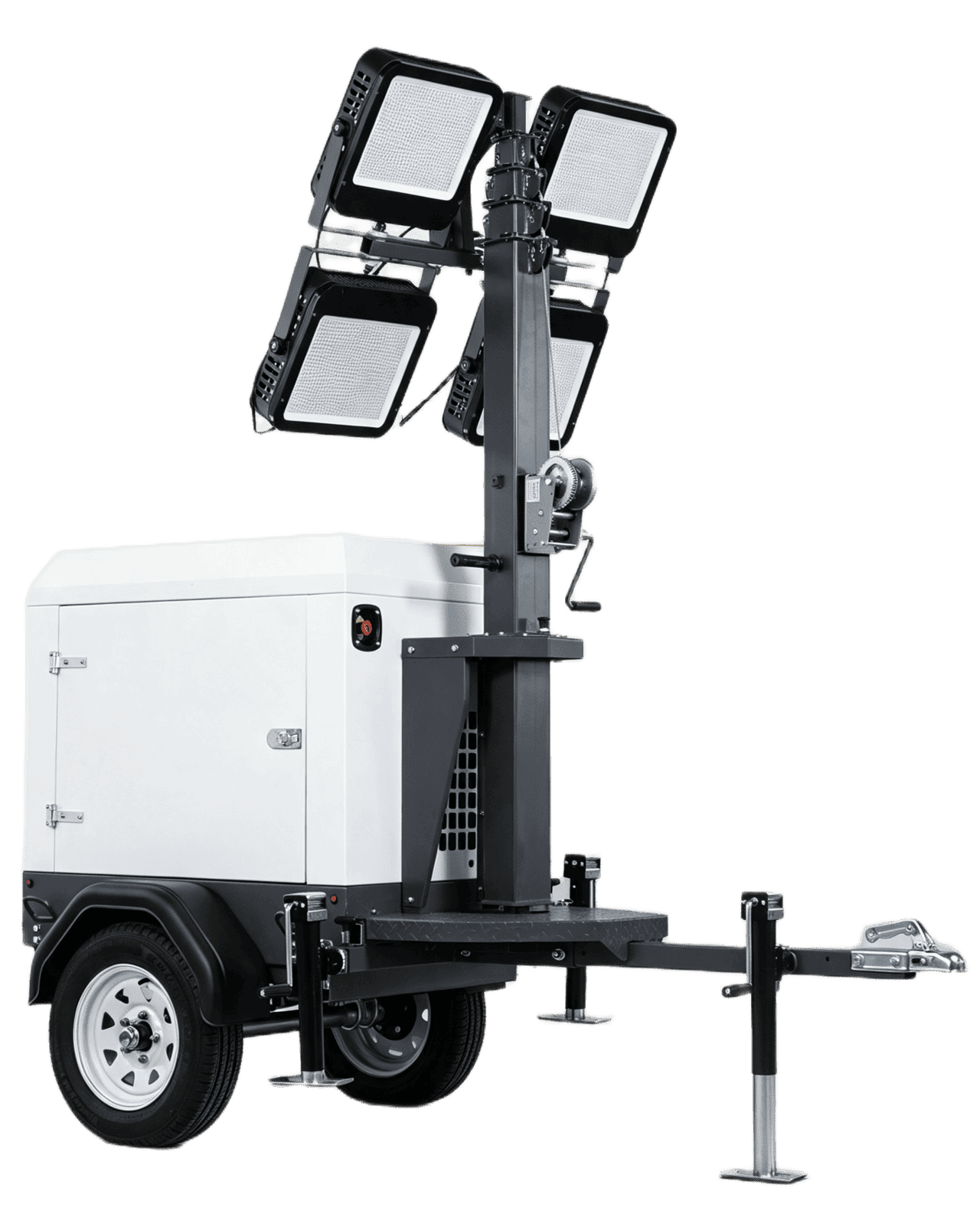

The YLTW-G combines a compact towable design with dependable diesel-powered illumination for demanding night work. Its water-cooled engine, 7.8 m telescopic mast, and up to 145 hours of runtime keep lighting practical and reliable across construction sites, roadworks, and remote locations. Easy to transport, position, and operate wherever the job takes you.
Request a QuoteProduct Overview
Compact Design. Built for Demanding Worksites.
Nighttime operations often require lighting that can move with the work. The YLTW-G Series is designed around this need, bringing together a compact towable platform, water-cooled diesel power, and an adjustable lighting mast in one self-contained unit. It provides a flexible lighting solution for outdoor projects where permanent power and fixed lighting are unavailable or impractical.
The compact trailer simplifies transport between locations, while the telescopic mast can be raised and adjusted to direct light across different working areas. With 340° mast rotation and straightforward manual operation, crews can adapt the lighting position as site conditions change, without repeatedly relocating the entire unit.
Whether supporting road maintenance, construction, or temporary operations in remote locations, the YLTW-G makes it easier to establish and maintain effective site lighting. Independent diesel power and extended operating capability help minimize interruptions, giving crews greater flexibility to work where and when lighting is needed.
Designed for Worksite Efficiency
Compact mobility, flexible lighting control, and reliable power in one practical system.
From transport and setup to daily operation, the YLTW-G brings together the essential features crews need to establish dependable lighting and keep outdoor projects moving after dark.
Reliable Diesel Power
Water-cooled diesel engines provide independent power for extended outdoor operations without access to the grid.
Extended Operating Time
A 110 L fuel tank supports up to 145 hours of operation, reducing refueling interruptions during long projects.
Multiple Engine Options
Five engine configurations offer different power outputs and brands to suit project and maintenance preferences.
Adjustable Lighting Height
The telescopic mast extends to 7.8 m, elevating fixtures to illuminate larger working areas from one position.
Flexible Light Positioning
340° mast rotation lets crews redirect illumination as work progresses without moving the entire tower.

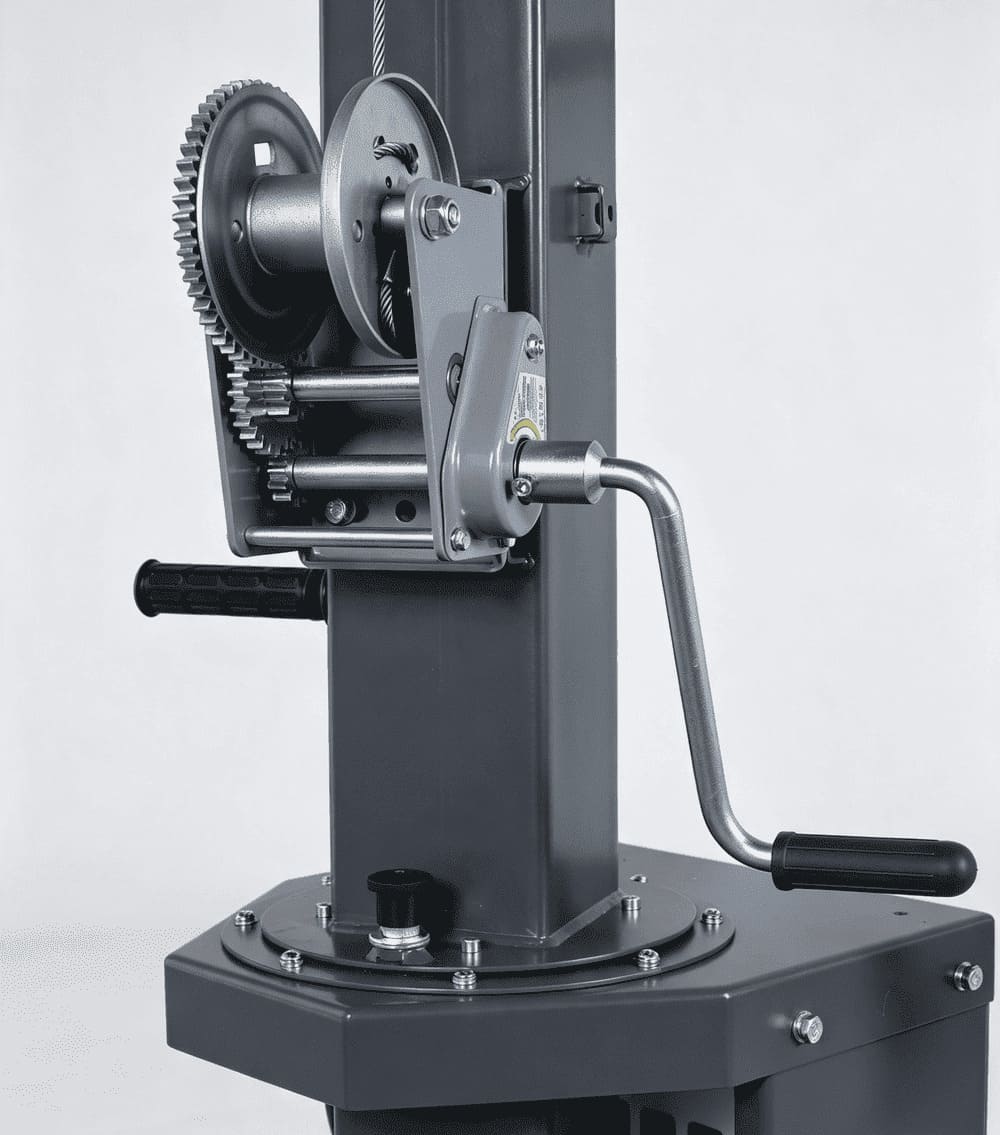

Straightforward Mast Control
A manual winch provides simple, controlled mast adjustment without the complexity of hydraulic lifting systems.
Compact Trailer Design
A space-efficient trailer simplifies transportation and positioning, making the tower easier to move between jobsites.

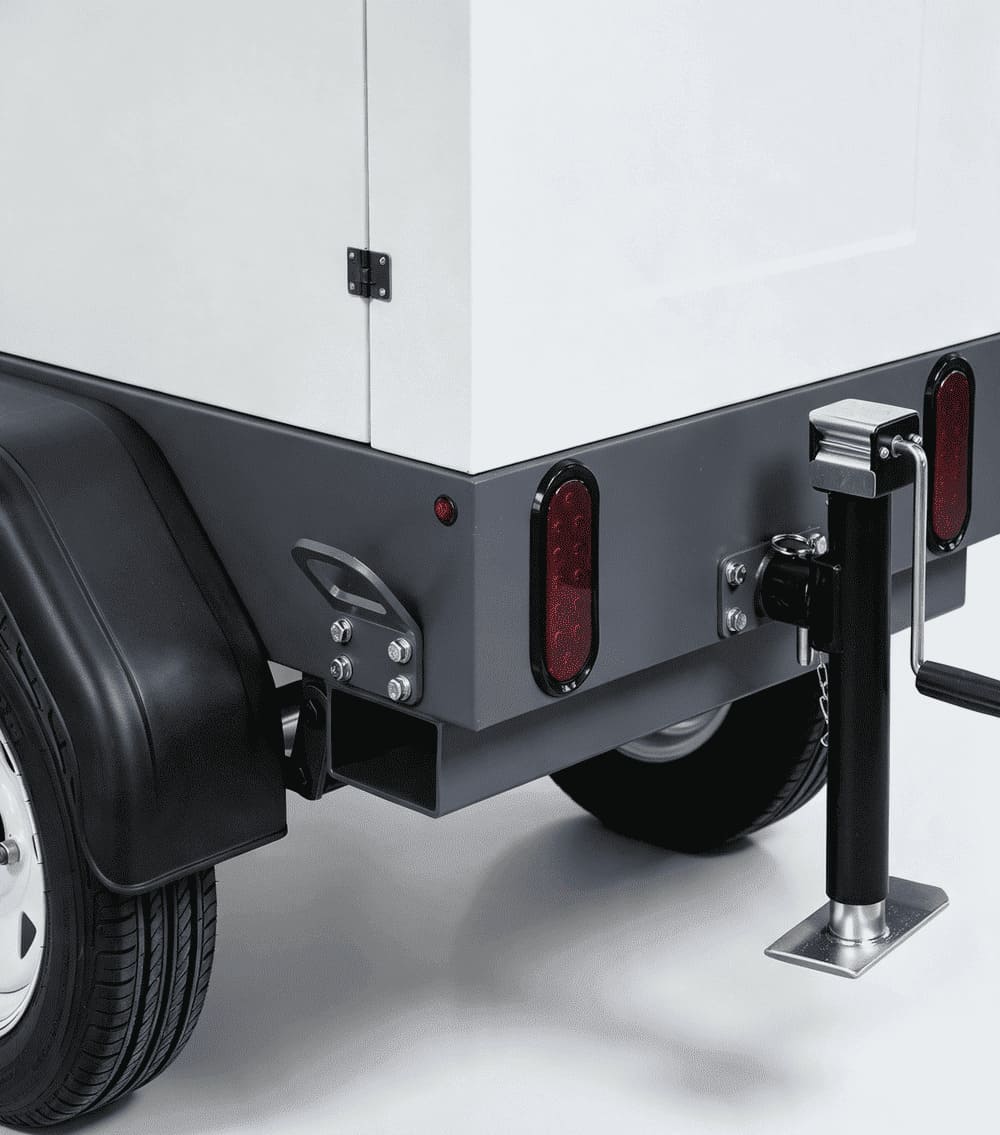

Stable Site Deployment
Four manual stabilizing jacks provide a supported base for tower setup on suitable outdoor working surfaces.
Technical Specifications
Compare operating capabilities and engine options to match your site requirements.
Common Specifications | |
|---|---|
Transport Dimensions | 2700 × 1190 × 2580 mm (L × W × H) |
Deployed Dimensions | 2700 × 2425 mm (L × W) |
Mast Height / Construction | 7800 mm · 5-section tubular steel |
Mast Raising / Rotation | Manual winch · 340° |
Mast Guidance | Deep-groove and rolling bearings |
Wind Resistance | 88.5 km/h at full mast extension |
Maximum Towing Speed | 80 km/h |
Trailer / Stabilization | Unbraked leaf-spring axle · 4 removable manual jacks |
Wheels / Coupling | ST 165/70R12 · 2-inch ball / 3-inch pintle ring |
Engine & Generator Model | |||||
|---|---|---|---|---|---|
Model | YLTW-G-9KP | YLTW-G-3KR | YLTW-G-3KK | YLTW-G-6KK | YLTW-G-6KC |
Engine Model | Pushen 2V80 | Runwei 2B06G3/5 | Kubota Z482-E3B | Kubota D1105-E3B | Changchai CZ380Q |
Cylinders | 2 | 3 | |||
Engine Type | V-shaped, water-cooled, four-stroke | Inline, water-cooled, four-stroke | |||
Speed (rpm) | 3000 / 3600 | 1500 / 1800 | |||
Prime Output (kW) | 8.5 / 9.5 | 3 | 6 | ||
Full-Load Runtime (h) | 55 | 145 | 90 | 100 | |
Alternator Type | Self-excited · 2-pole · Single-phase | ||||
Frequency / Voltage | 50 Hz: 220/110 V · 60 Hz: 240/120 V | ||||
Power Outlet / Controller | 1 × 16 A / 220 V socket · MEBAY controller | ||||
Fuel Tank | 110 L | ||||
note: | All engines are water-cooled, four-stroke, naturally aspirated. G-9KP power ratings correspond to 50 Hz and 60 Hz respectively. | ||||
Product Detail View
Heavy-duty construction. Long runtime. Reliable towing
Ready to light up your jobsite?
When the work cannot stop at sunset, YLTW-A keeps your site illuminated and your operation moving. Get in touch to discuss your requirements and receive a configuration tailored to your project.
Request Solution & Quote
